1775234001 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1775234001
Manufacturer	Weidmuller
Other Part Numbers	281-6811-2-ND 281-6811-1-ND 2266-1712780000 1775234001-NDR SL-SMT5.08HC/02/90LF1.5SNBKRL 281-6811-6-ND 1775234001-ND 281-6811-6 281-6811-6INACTIVE 281-6811-1 281-6811-2 SLSMT5.08290LF1.5250
Description	TERM BLOCK HDR 2POS 90DEG 5.08MM

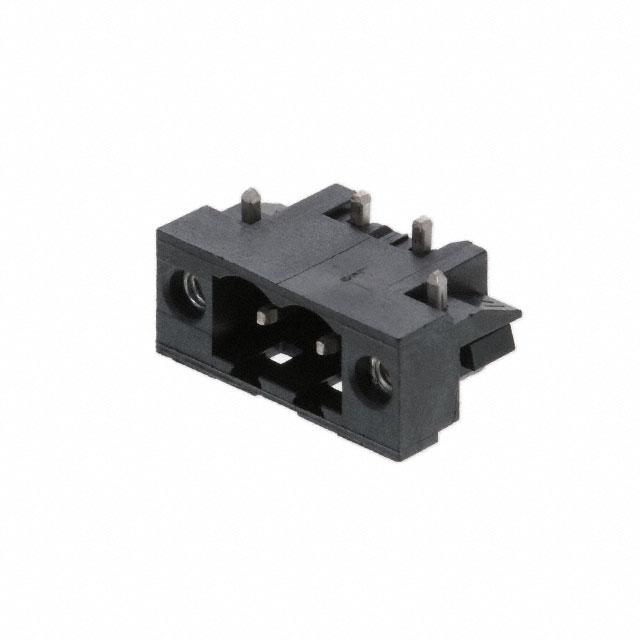

Detailed Description	2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Mating and Mounting Flange
Color		Black
Mounting Type		Through Hole
Number of Positions		2
Pitch		0.200" (5.08mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-20°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		13A
Number of Levels		1
Positions Per Level		2
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Liquid Crystal Polymer (LCP), Halogen Free
Contact Mating Finish		Tin
Contact Tail Length		0.059" (1.50mm)
Insulation Height		0.335" (8.51mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1775234001

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
