1788266 _ Specialized_Terminal Blocks_Connectors, Interconnects

Part Number	1788266
Manufacturer	Phoenix Contact
Other Part Numbers	1788266-ND UMSTBVK 2.5/17-G-5.08 UMSTBVK2.5/17-G-5.08

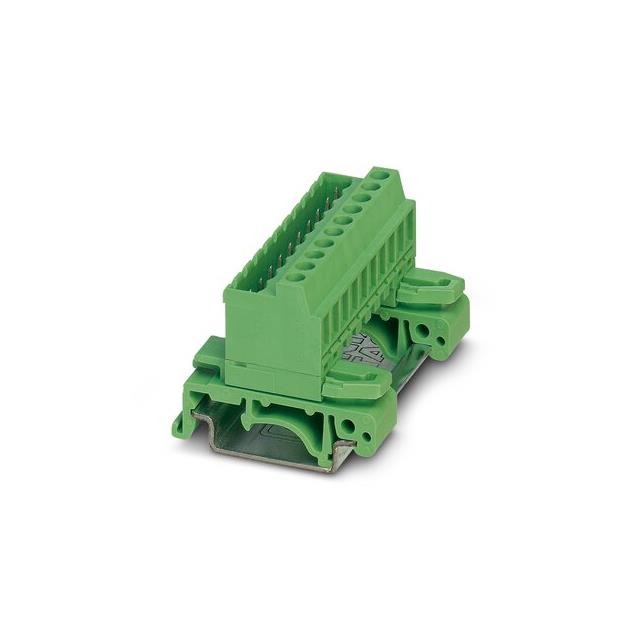

Description	TERM BLK PLUG 17POS 42.5MM GREEN
Detailed Description	17 Position Terminal Block Green Plug Connection - Ganged 42.5mm
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Specialized
Manufacturer		Phoenix Contact
Series		COMBICON UMSTBVK
Packaging		Bulk
Part Status		Active
Mounting Type		DIN Rail
Length		3.460" (87.88mm)
Type		Plug Connection - Ganged
Termination Style		Plug Receptacles, Screw
Material - Insulation		Polyamide (PA), Nylon
Material Flammability Rating		UL94 V-2
Number of Levels		1
Terminal - Width		42.5mm
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Height (Max)		1.984" (50.40mm)
Housing Color		Green
Stripping Length		7mm
Current - UL		12 A
Current - IEC		12 A
Voltage - IEC		300 V
Voltage - UL		300 V
Number of Positions		17

RESOURCE TYPE		LINK
Datasheets		1788266

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
