Part Number | 1788826 |
---|---|
Manufacturer | Phoenix Contact |
Other Part Numbers | 277-6217-ND 1788826-NDR 277-6217 1788826-ND MSTBVK2,5/12-G-5,08 |

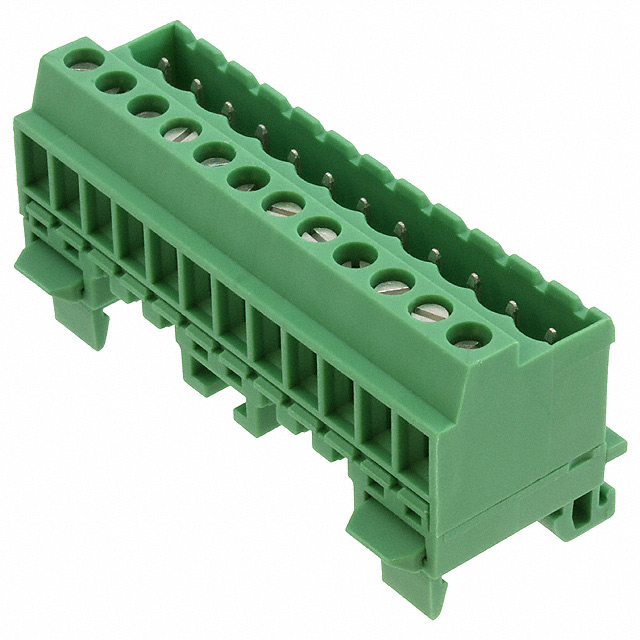

Description | TERM BLK PLUG 12POS 27.2MM GREEN |
Detailed Description | 12 Position Terminal Block Green Plug Connection - Ganged 27.2mm |
Manufacturer Standard Lead Time | 10 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Phoenix Contact | |
Series | COMBICON MSTBVK | |
Packaging | Bulk | |
Part Status | Active | |
Mounting Type | DIN Rail | |
Length | 2.460" (62.48mm) | |
Type | Plug Connection - Ganged | |
Termination Style | Plug Receptacles, Screw | |
Material - Insulation | Polyamide (PA), Nylon | |
Material Flammability Rating | UL94 V-2 | |
Number of Levels | 1 | |
Terminal - Width | 27.2mm | |
Wire Gauge or Range - AWG | 12-30 AWG | |
Wire Gauge or Range - mm² | 0.2-2.5mm² | |
Height (Max) | 1.181" (30.00mm) | |
Housing Color | Green | |
Stripping Length | 7mm | |
Current - UL | 12 A | |
Current - IEC | 12 A | |
Voltage - IEC | 300 V | |
Voltage - UL | 300 V | |
Number of Positions | 12 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 1788826 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $36.88 | $36.88 |
10 | $35.87 | $358.70 |
50 | $33.53 | $1,676.50 |
100 | $30.84 | $3,084.00 |
250 | $30.27 | $7,567.50 |
