1788907 _ Specialized_Terminal Blocks_Connectors, Interconnects

Part Number	1788907
Manufacturer	Phoenix Contact
Other Part Numbers	1788907-ND MSTBVK2,5/20-G-5,08 1788907-NDR

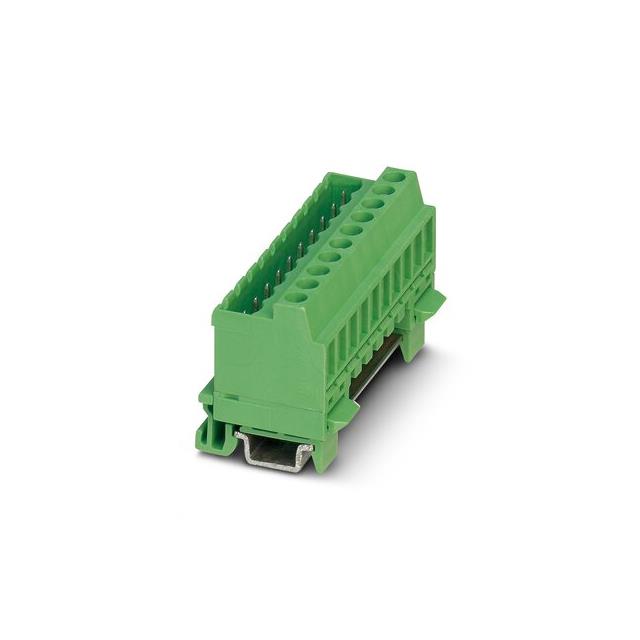

Description	TERM BLK PLUG 20POS 27.2MM GREEN
Detailed Description	20 Position Terminal Block Green Plug Connection - Ganged 27.2mm
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Specialized
Manufacturer		Phoenix Contact
Series		COMBICON MSTBVK
Packaging		Bulk
Part Status		Active
Mounting Type		DIN Rail
Length		4.060" (103.12mm)
Type		Plug Connection - Ganged
Termination Style		Plug Receptacles, Screw
Material - Insulation		Polyamide (PA), Nylon
Material Flammability Rating		UL94 V-2
Number of Levels		1
Terminal - Width		27.2mm
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Height (Max)		1.181" (30.00mm)
Housing Color		Green
Stripping Length		7mm
Current - UL		12 A
Current - IEC		12 A
Voltage - IEC		300 V
Voltage - UL		300 V
Number of Positions		20

RESOURCE TYPE		LINK
Datasheets		1788907

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
