1792090 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1792090
Manufacturer	Phoenix Contact
Other Part Numbers	277-1037-ND MVSTBR 2.5/10-ST 277-1037 MVSTBR2,5/10-ST

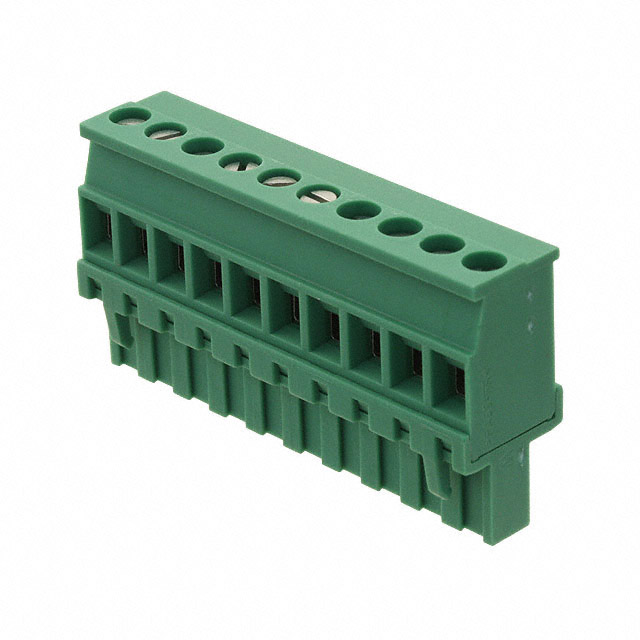

Description	TERM BLOCK PLUG 10POS 90DEG 5MM
Detailed Description	10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MVSTBR
Packaging		Bulk
Part Status		Active
Features		Retention Latches (Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		10
Pitch		0.197" (5.00mm)
Screw Size		M3
Type		Plug, Female Sockets
Termination Style		Screw - Rising Cage Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		10
Plug Wire Entry		90°
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5-0.6 Nm (4.4-5.3 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		1.024" (26.01mm)
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1792090

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
