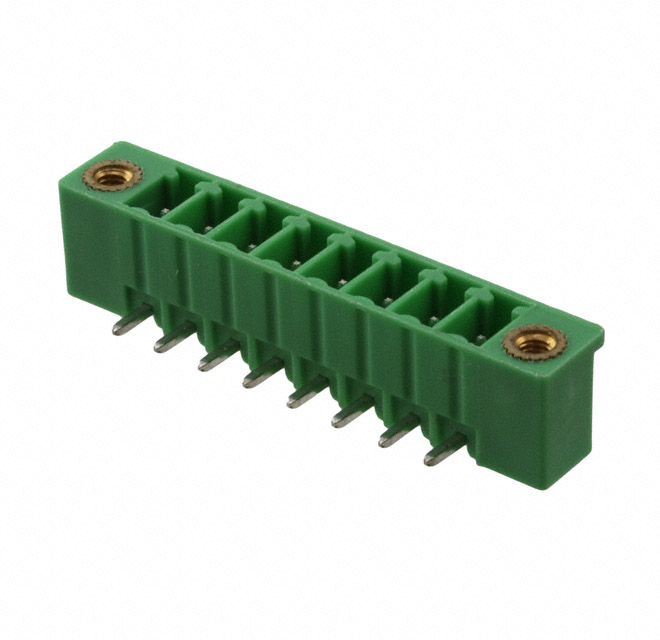

1793470000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1793470000
Manufacturer	Weidmuller
Other Part Numbers	281-1944-ND 2266-1758320001 281-1944-NDR SC 3.81/08/90F 3.2SN GN BX SL3.81/8/90F 281-1944
Description	TERM BLOCK HDR 8POS 90DEG 3.81MM
Detailed Description	8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SC
Packaging		Bulk
Part Status		Active
Features		Mating Flange
Color		Green
Mounting Type		Through Hole
Number of Positions		8
Pitch		0.150" (3.81mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 120°C
Termination Style		Solder
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		17.5A
Number of Levels		1
Positions Per Level		8
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polyamide (PA), Nylon, Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.126" (3.20mm)
Insulation Height		0.278" (7.06mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
