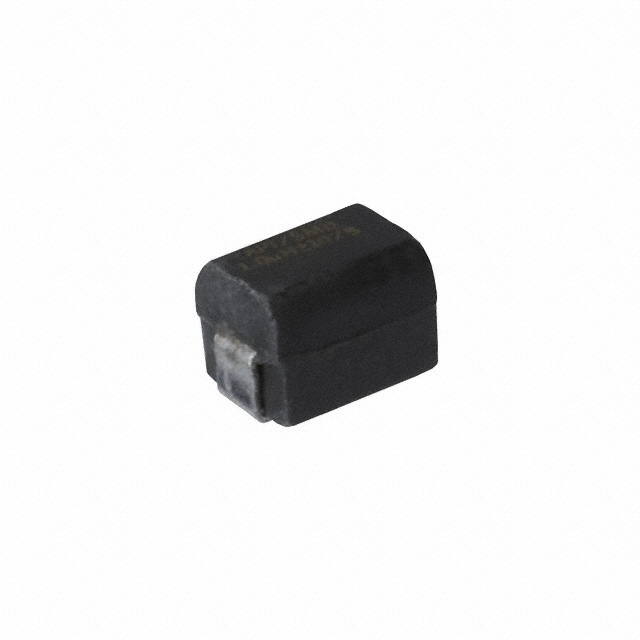

1812-222K

Part Number
1812-222K
Manufacturer API Delevan
Other Part Numbers
DN12222TR-ND
DN12222TR
1812-222K TR 500
DN12222CT
1812-222KB
Description FIXED IND 2.2UH 535MA 700MOHM SM
Detailed Description 2.2 µH Unshielded Inductor 535 mA 700mOhm Max 1812 (4532 Metric)
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
1812
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Mounting Type Surface Mount
Shielding Unshielded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 700mOhm Max
Q @ Freq 50 @ 7.9MHz
Frequency - Self Resonant 55MHz
Material - Core Ferrite
Inductance Frequency - Test 7.9 MHz
Supplier Device Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Inductance 2.2 µH
Current Rating (Amps) 535 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 1812-222K

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
