1836118 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1836118
Manufacturer	Phoenix Contact
Other Part Numbers	277-17230-ND MC 1,5/ 6-ST-5,08 277-17230 MC1,5/6-ST-5,08 1836118-ND

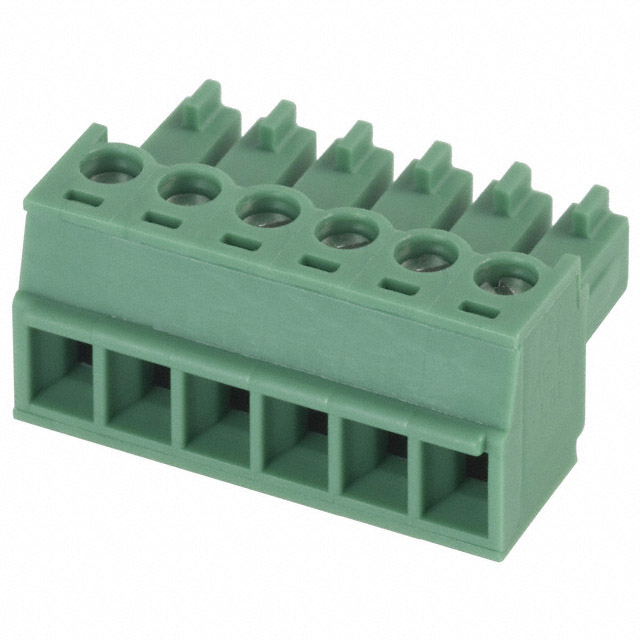

Description	TERM BLOCK PLUG 6POS STR 5.08MM
Detailed Description	6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MC
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		6
Pitch		0.200" (5.08mm)
Screw Size		M2
Type		Plug, Female Sockets
Termination Style		Screw - Rising Cage Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		8A
Number of Levels		1
Wire Gauge or Range - AWG		14-30 AWG
Wire Gauge or Range - mm²		0.14-1.5mm²
Positions Per Level		6
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.22-0.25 Nm (1.9-2.2 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		0.437" (11.10mm)
Current - UL		8 A
Voltage - IEC		400 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1836118

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$6.88	$6.88
Total Amount: $6.88
