1836874 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1836874
Manufacturer	Phoenix Contact
Other Part Numbers	1836874-ND CC 2 5/21-GF-LR P20 THR

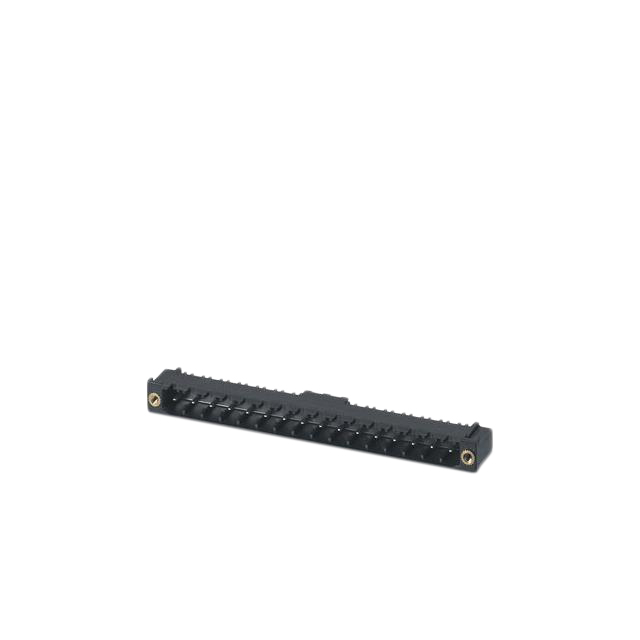

Description	TERM BLOCK HDR 21POS BLK
Detailed Description	21 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON CC
Packaging		Bulk
Part Status		Active
Features		Mating and Mounting Flange
Color		Black
Mounting Type		Through Hole
Number of Positions		21
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-40°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		21
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Liquid Crystal Polymer (LCP)
Contact Mating Finish		Tin
Contact Tail Length		0.079" (2.00mm)
Insulation Height		0.337" (8.56mm)
Current - UL		16 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1836874

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
