1843787 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1843787
Manufacturer	Phoenix Contact
Other Part Numbers	277-6547-ND 277-6547 1843787-NDR 1843787-ND Q1013847 MCV1,5/20-G-3,5

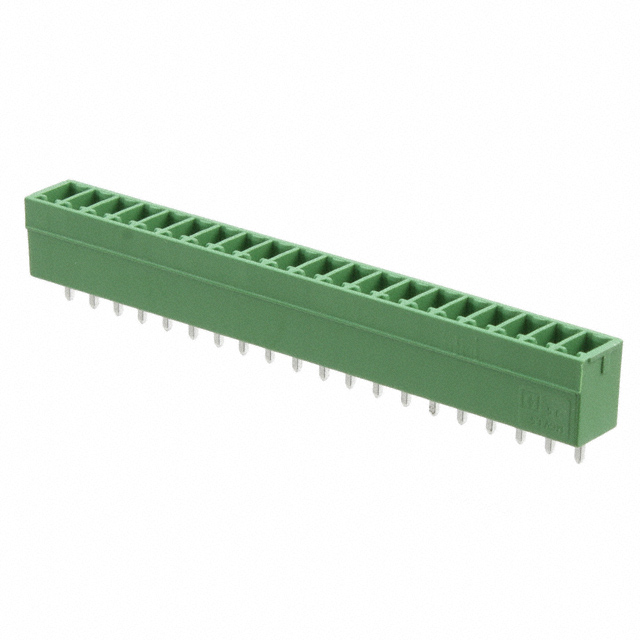

Description	TERM BLOCK HDR 20POS VERT 3.5MM
Detailed Description	20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MCV
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Through Hole
Number of Positions		20
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		8A
Number of Levels		1
Positions Per Level		20
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.134" (3.40mm)
Insulation Height		0.362" (9.20mm)
Current - UL		8 A
Voltage - IEC		250 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1843787

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
