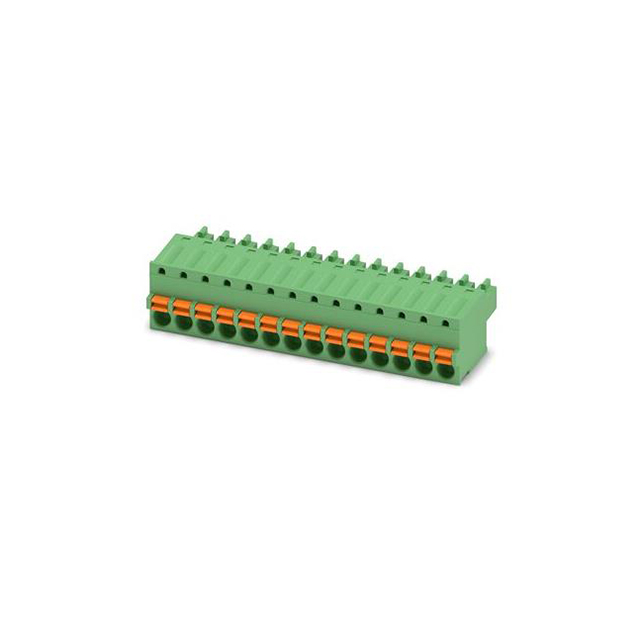

1851164 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1851164
Manufacturer	Phoenix Contact
Other Part Numbers	277-1334-ND FK-MCP1,5/14-ST-3,81 277-1334 277-1334-NDR FK-MCP 1,5/14-ST-3,8
Description	TERM BLOCK PLUG 14POS STR 3.81MM
Detailed Description	14 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	7 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON FK-MCP
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		14
Pitch		0.150" (3.81mm)
Type		Plug, Female Sockets
Termination Style		Screwless - Leg Spring, Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		8A
Number of Levels		1
Wire Gauge or Range - AWG		16-28 AWG
Wire Gauge or Range - mm²		0.14-1.5mm²
Positions Per Level		14
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Contact Mating Finish		Tin
Wire Strip Length		9mm
Insulation Height		0.488" (12.40mm)
Current - UL		8 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
