1859522 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1859522
Manufacturer	Phoenix Contact
Other Part Numbers	277-1296-ND EMSTBVA 2,5/3-G-5,08 277-1296 EMSTBVA2,5/3-G-5,08 277-1296-NDR

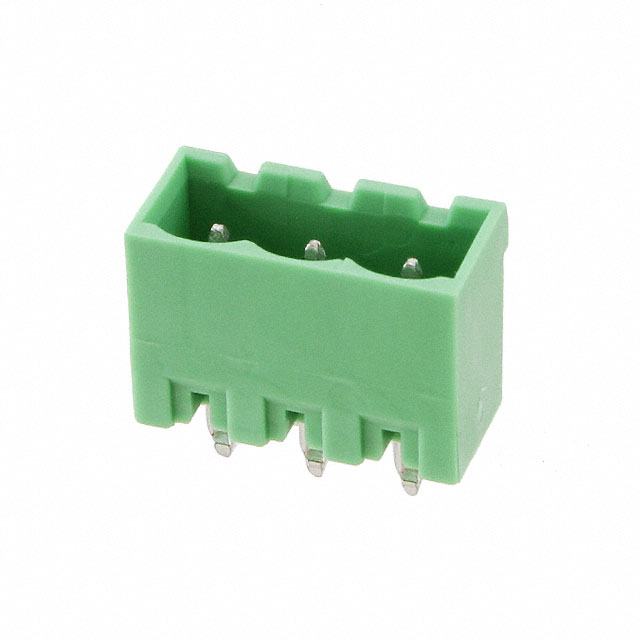

Description	TERM BLOCK HDR 3POS VERT 5.08MM
Detailed Description	3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON EMSTBVA
Packaging		Bulk
Part Status		Obsolete
Color		Green
Mounting Type		Through Hole
Number of Positions		3
Pitch		0.200" (5.08mm)
Type		Header, Male Pins, Shrouded (4 Side)
Termination Style		Press-Fit
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		3
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.154" (3.90mm)
Insulation Height		0.472" (12.00mm)
Current - UL		12 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		Multiple Device 11/Oct/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
