1869075

1869075

Part Number	1869075
Manufacturer	Phoenix Contact
Other Part Numbers	277-6172-ND 1869075-NDR 1869075-ND 277-6172 SMKDSN1,5/3

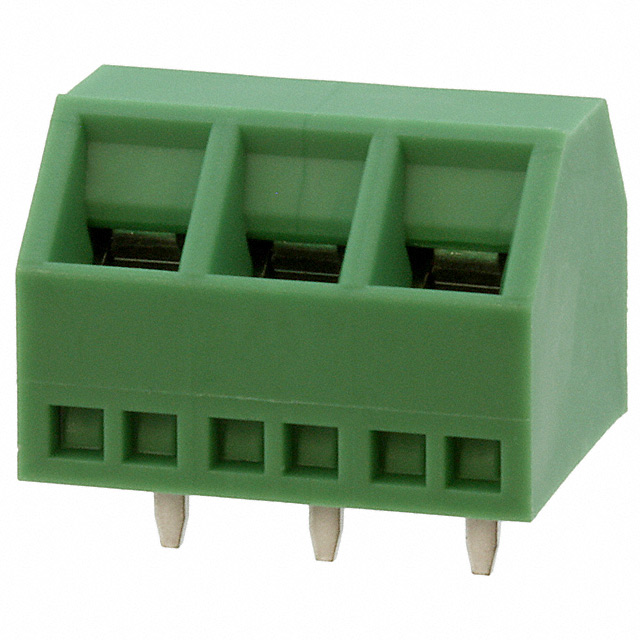

Description	TERM BLOCK 3POS 55DEG 5MM PCB
Detailed Description	3 Position Wire to Board Terminal Block 55° (125°) Angle with Board 0.197" (5.00mm) Through Hole
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		Phoenix Contact
Series		COMBICON SMKDSN
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Through Hole
Wire Gauge		14-30 AWG
Pitch		0.197" (5.00mm)
Mating Orientation		55° (125°) Angle with Board
Positions Per Level		3
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Thread		M3
Wire Termination		Screw - Rising Cage Clamp
Current		10 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1869075
Datasheets		Multiple Devices 01/Jul/2013

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 267

Can ship immediately.
