1873087 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1873087
Manufacturer	Phoenix Contact
Other Part Numbers	277-1344-ND 277-1344 277-1344-NDR FKC 2,5/5-ST-5,08 FKC2,5/5-ST-5,08

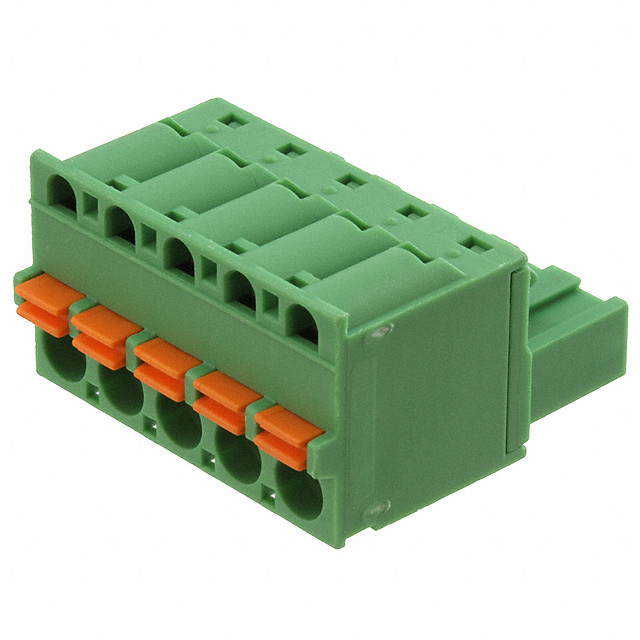

Description	TERM BLOCK PLUG 5POS STR 5.08MM
Detailed Description	5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON FKC
Packaging		Bulk
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		5
Pitch		0.200" (5.08mm)
Type		Plug, Female Sockets
Termination Style		Screwless - Leg Spring, Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		12-26 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		5
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Contact Mating Finish		Tin
Wire Strip Length		10mm
Insulation Height		0.591" (15.00mm)
Current - UL		10 A
Voltage - IEC		630 V
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
