18R683C

Part Number
18R683C
Manufacturer Murata Power Solutions
Other Part Numbers
811-1311-ND
811-1311
Description FIXED IND 68UH 1.35A 70 MOHM TH

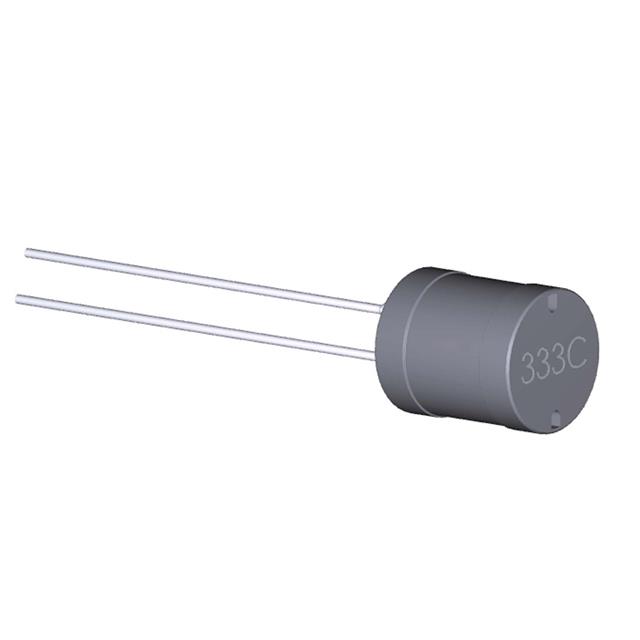

Detailed Description 68 µH Unshielded Wirewound Inductor 1.35 A 70mOhm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Murata Power Solutions
Series
1800R
Packaging
Bulk
Part Status Active
Tolerance ±10%
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.539" Dia (13.70mm)
Mounting Type Through Hole
Shielding Unshielded
Type Wirewound
Operating Temperature 0°C ~ 70°C
DC Resistance (DCR) 70mOhm Max
Q @ Freq 27 @ 100kHz
Frequency - Self Resonant 8.29MHz
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.626" (15.90mm)
Inductance 68 µH
Current Rating (Amps) 1.35 A

Documents & Media

RESOURCE TYPE LINK
Datasheets 18R683C
Datasheets 1800R Series End
Datasheets 1800R Series Side

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
