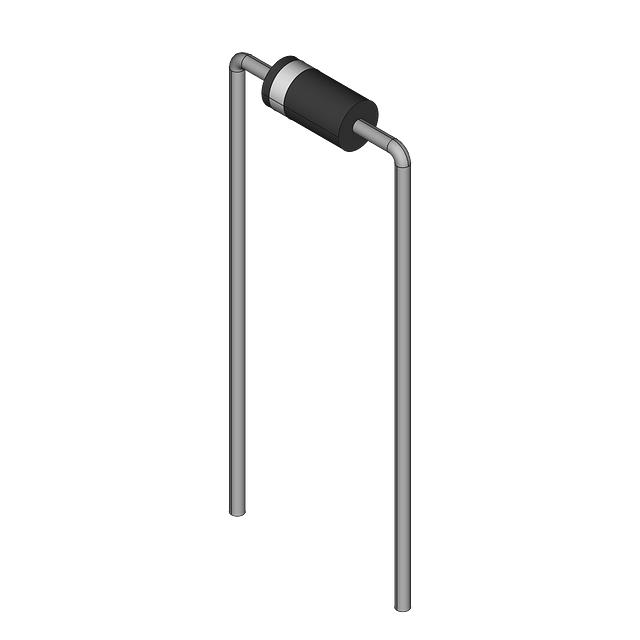

1N4756A

Part Number
1N4756A
Manufacturer Fairchild Semiconductor
Other Part Numbers
2156-1N4756A-ND
2156-1N4756A
ONSFSC1N4756A
Description ZENER DIODE, 47V, 5%, 1W
Detailed Description Zener Diode 47 V 1 W ±5% Through Hole Axial

Product Attributes

Category
Manufacturer Fairchild Semiconductor
Series
Packaging
Bulk
Part Status Active
Tolerance ±5%
Package / Case Axial
Mounting Type Through Hole
Operating Temperature -65°C ~ 20°C
Voltage - Zener (Nom) (Vz) 47 V
Impedance (Max) (Zzt) 80 Ohms
Supplier Device Package Axial
Power - Max 1 W
Current - Reverse Leakage @ Vr 5 µA @ 35.8 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
