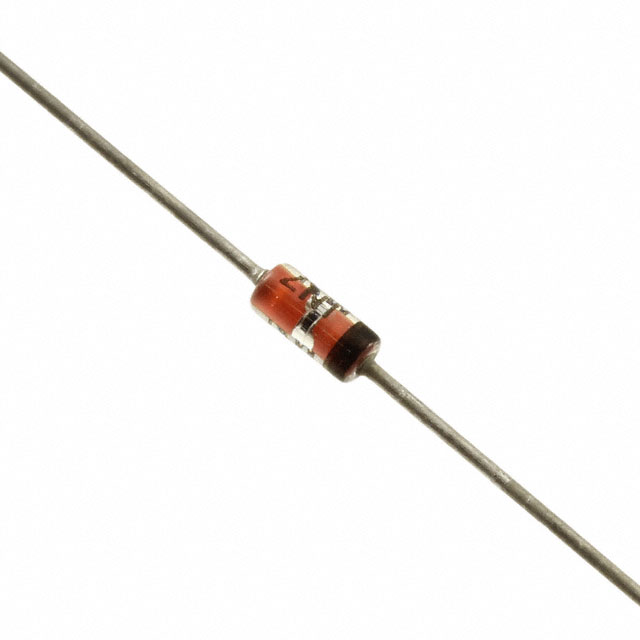

1N5245BDO35

1N5245BDO35

Part Number	1N5245BDO35
Manufacturer	Microsemi Corporation
Other Part Numbers	150-1N5245BDO35TR-ND 1N5245BDO35MSCT-ND 1N5245BMSTR-ND 1N5245BDO3 1N5245DO35MSCT 1N5245B(DO-35)MSCT 1N5245B(DO-35)MSTR-ND 150-1N5245BDO35TR 1N5245BMSCT-ND 1N5245BDO35MSTR-ND 1N5245BMSTR 1N5245DO35 1N5245BDO35MSCT 1N5245B(DO-35)MSTR-NDR 1N5245B(DO-35)MSTR 150-1N5245BDO35CT 1N5245B(DO-35)MSCT-ND 1N5245DO35MSTR 1N5245BMSCT 1N5245BDO35MSTR-NDR 1N5245BDO35MSTR 1N5245DO35MSCT-ND 1N5245DO35MSTR-ND
Description	DIODE ZENER 15V 500MW DO35
Detailed Description	Zener Diode 15 V 500 mW ±5% Through Hole DO-35
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Microsemi Corporation
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AH, DO-35, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 175°C
Voltage - Zener (Nom) (Vz)		15 V
Impedance (Max) (Zzt)		16 Ohms
Supplier Device Package		DO-35
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		1.5 V @ 200 mA
Current - Reverse Leakage @ Vr		100 nA @ 11 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N5245BDO35
Environmental Information		Microchip CA Prop65
Environmental Information		Microchip REACH
Environmental Information		Microchip RoHS
Product Drawings		1N52 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
