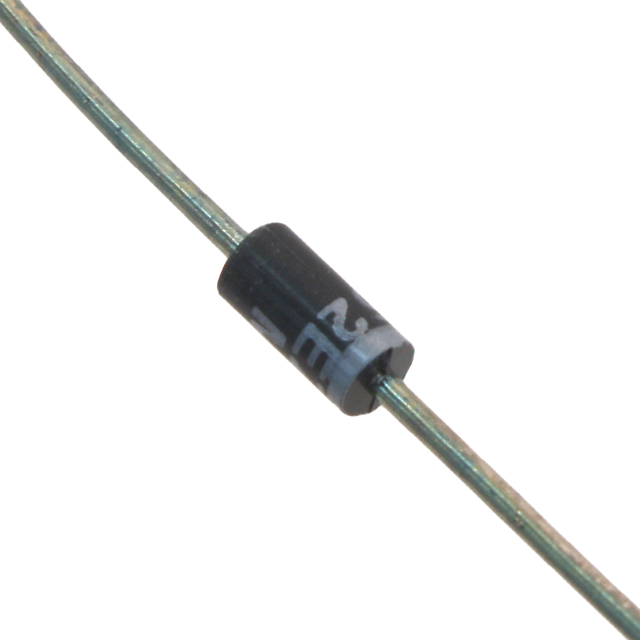

1N5337B

1N5337B

Part Number	1N5337B
Manufacturer	Microsemi Corporation
Other Part Numbers	150-1N5337BTR-ND 1N5337BMSTR-NDR 150-1N5337BTR 1N5337BMSCT 150-1N5337BCT 1N5337BMSTR 1N5337BMSCT-ND 1N5337BMSTR-ND
Description	DIODE ZENER 4.7V 5W T18
Detailed Description	Zener Diode 4.7 V 5 W ±5% Through Hole T-18

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Microsemi Corporation
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		T-18, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		4.7 V
Impedance (Max) (Zzt)		2 Ohms
Supplier Device Package		T-18
Power - Max		5 W
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 1 A
Current - Reverse Leakage @ Vr		5 µA @ 1 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N5337B
Environmental Information		Microchip RoHS
Environmental Information		Microchip REACH
Environmental Information		Microchip CA Prop65

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
