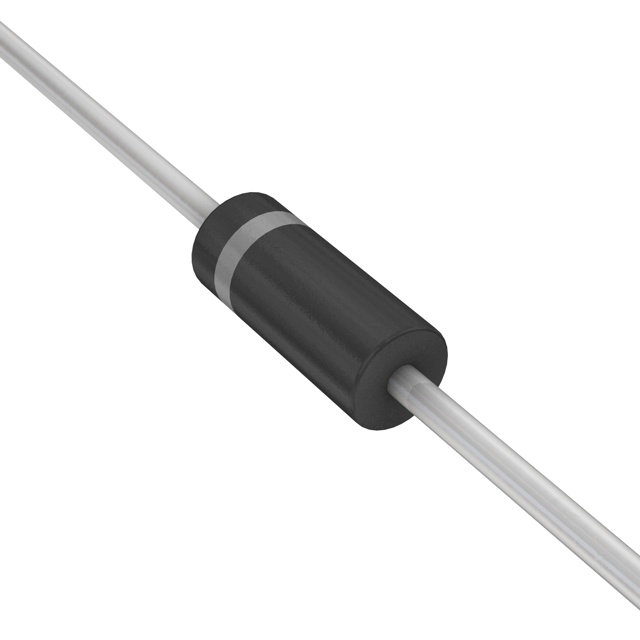

1N5344BRLG

1N5344BRLG

Part Number	1N5344BRLG
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	1N5344BRLGOSTR-ND 1N5344BRLGOSCT-ND 1N5344BRLGOSCT 1N5344BRLGOSTR 2832-1N5344BRLGTR
Description	DIODE ZENER 8.2V 5W AXIAL
Detailed Description	Zener Diode 8.2 V 5 W ±5% Through Hole Axial
Manufacturer Standard Lead Time	42 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		T-18, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 200°C
Voltage - Zener (Nom) (Vz)		8.2 V
Impedance (Max) (Zzt)		1.5 Ohms
Supplier Device Package		Axial
Power - Max		5 W
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 1 A
Current - Reverse Leakage @ Vr		10 µA @ 6.2 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N5344BRLG
Datasheets		onsemi RoHS
Datasheets		onsemi REACH
Datasheets		Material Declaration 1N5344BRLG
Datasheets		Datasheet Update 14/Aug/2008

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.46	$0.46
Total Amount: $0.46

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
4,000	$0.16	$640.00
8,000	$0.15	$1,200.00
12,000	$0.14	$1,680.00
28,000	$0.13	$3,640.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.46	$0.46
10	$0.40	$4.00
100	$0.28	$28.00
500	$0.21	$105.00
1,000	$0.17	$170.00
2,000	$0.16	$320.00
