Part Number |
2000486
|
---|---|
Manufacturer | TE Connectivity Measurement Specialties |
Other Part Numbers |
MSP4101P4-ND
MSP4101P4
400100P5N100000
11030621-00
MSP-400-100-P-5-N-1
|

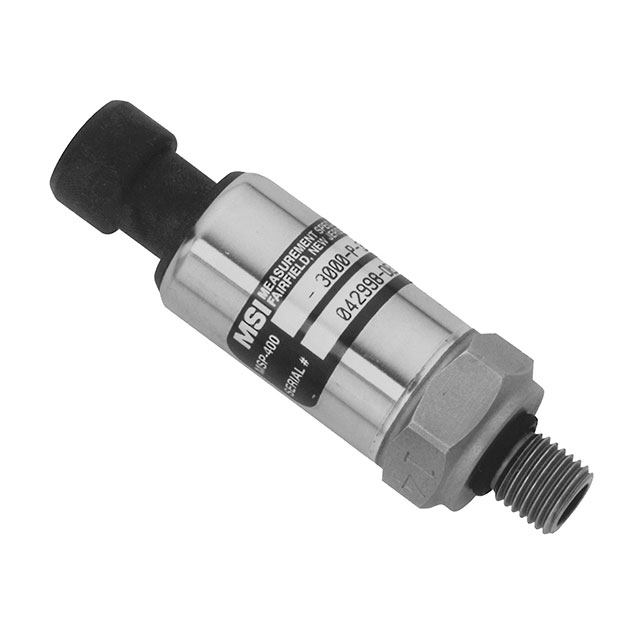

Description | TRANSDUCER 100# PRES 4-20MA |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Measurement Specialties | |
Series |
MSP400
|
|
Packaging | ||
Part Status | Obsolete | |
Features | Amplified Output, Temperature Compensated | |
Package / Case | Cylinder | |
Output Type | Analog Current | |
Output | 4 mA ~ 20 mA | |
Operating Pressure | 100PSI (689.48kPa) | |
Pressure Type | Vented Gauge | |
Accuracy | ±1.5% | |
Operating Temperature | -40°C ~ 85°C | |
Termination Style | Cable | |
Voltage - Supply | 10V ~ 30V | |
Port Size | Male - 1/4" (6.35mm) NPT | |
Applications | Industrial Automation | |
Port Style | Threaded | |
Maximum Pressure | 200PSI (1378.95kPa) |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 9026.20.4000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
