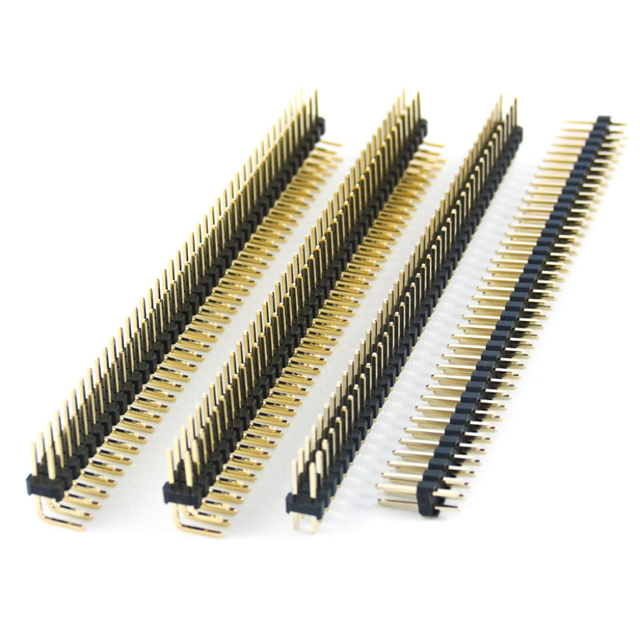

2011-2X15G00RB _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	2011-2X15G00RB
Manufacturer	Oupiin
Other Part Numbers	2553-2011-2X15G00RB-ND 2553-2011-2X15G00RB
Description	PIN HEADER, DOUBLE ROW, 30 PIN,
Detailed Description	Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Oupiin
Series		2011
Packaging		Bulk
Part Status		Active
Connector Type		Header
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		30
Number of Rows		2
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.197" (5.00mm)
Shrouding		Unshrouded
Insulation Material		Polybutylene Terephthalate (PBT)
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.236" (6.00mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		2 (1 Year)
RoHS Status		ROHS3 Compliant
