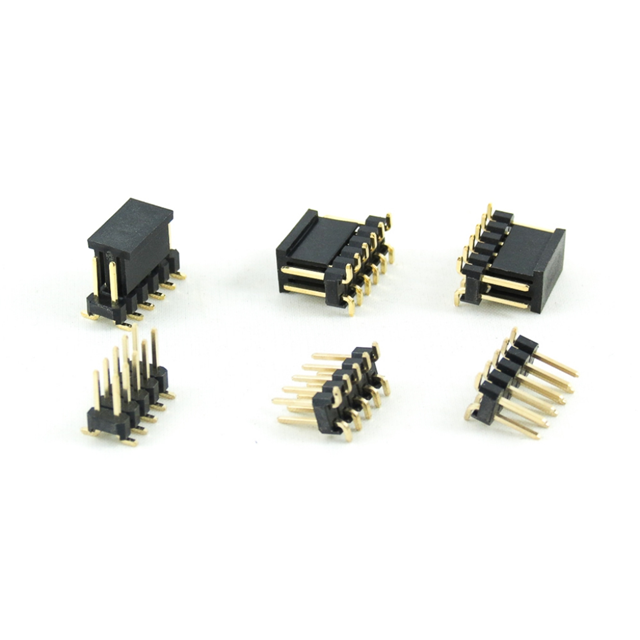

2015-2X07G00DT-P _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	2015-2X07G00DT-P
Manufacturer	Oupiin
Other Part Numbers	2553-2015-2X07G00DT-P-ND HTTPS://WWW.OUPIIN.COM/UPLOAD/GDATA/I5-01.JPG 2553-2015-2X07G00DT-P
Description	PIN HEADER, DOUBLE ROW, 14 PIN,
Detailed Description	Connector Header Surface Mount 14 position 0.100" (2.54mm)

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Oupiin
Series		2015
Packaging		Bulk
Part Status		Active
Features		Pick and Place
Connector Type		Header
Current Rating (Amps)		3A
Mounting Type		Surface Mount
Number of Positions		14
Number of Rows		2
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Insulation Height		0.098" (2.50mm)
Shrouding		Unshrouded
Insulation Material		Polyamide (PA6T), Nylon 6T
Row Spacing - Mating		0.059" (1.50mm)
Contact Length - Mating		0.244" (6.20mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		2 (1 Year)
RoHS Status		ROHS3 Compliant
