2041-1X40G00SA _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	2041-1X40G00SA
Manufacturer	Oupiin
Other Part Numbers	2553-2041-1X40G00SA-ND 2553-2041-1X40G00SA

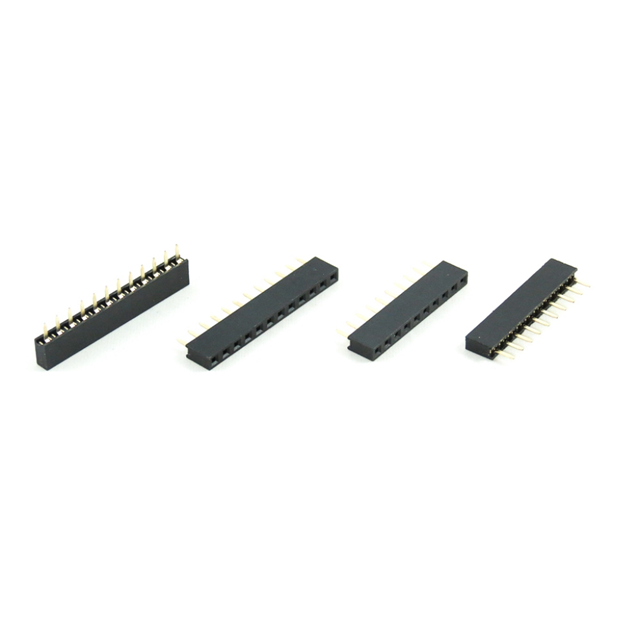

Description	PCB SOCKET, SINGLE ROW, 40 PIN,
Detailed Description	40 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Oupiin
Series		2041
Packaging		Tray
Part Status		Active
Connector Type		Socket
Current Rating (Amps)		2A
Mounting Type		Through Hole
Number of Positions		40
Style		Board to Board
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Contact Length - Post		0.126" (3.20mm)
Insulation Height		0.197" (5.00mm)
Insulation Material		Thermoplastic, Polyester, Glass Filled
Number of Rows		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tray	1	$1.94	$1.94
Total Amount: $1.94
