20697-034E-01

20697-034E-01

Part Number	20697-034E-01
Manufacturer	I-PEX
Other Part Numbers	5378-20697-034E-01TR-ND 5378-20697-034E-01CT-ND 5378-20697-034E-01DKR-ND 5378-20697-034E-01CT 5378-20697-034E-01DKR 5378-20697-034E-01TR

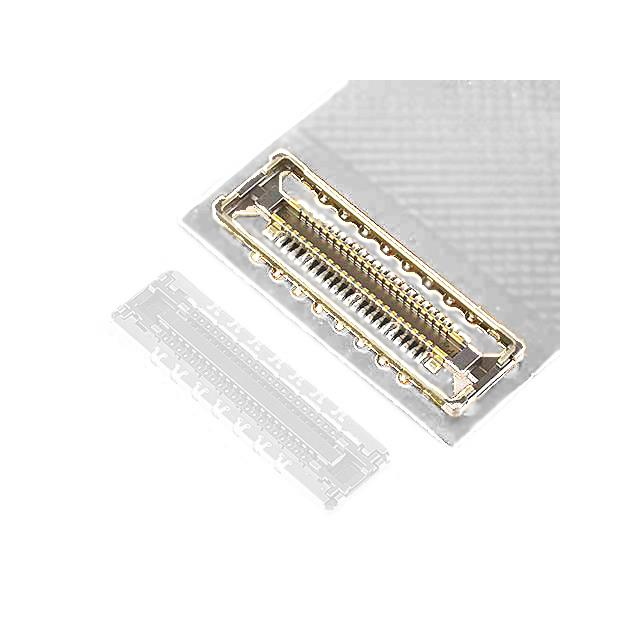

Description	NOVASTACK 35-HDP PLUG 34P
Detailed Description	38 (34 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		I-PEX
Series		NOVASTACK® 35-HDP
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Shielded
Connector Type		Plug, Outer Shroud Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		38 (34 + 4 Power)
Pitch		0.014" (0.35mm)
Height Above Board		0.026" (0.65mm)
Contact Finish Thickness		1.97µin (0.050µm)
Mated Stacking Heights		0.7mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		20697-034E-01

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10000

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$2.05	$2.05
Total Amount: $2.05

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
10,000	$0.98	$9,800.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$2.05	$2.05
10	$1.78	$17.80
25	$1.70	$42.50
50	$1.67	$83.50
100	$1.59	$159.00
250	$1.44	$360.00
500	$1.33	$665.00
1,000	$1.14	$1,140.00
2,500	$1.06	$2,650.00
