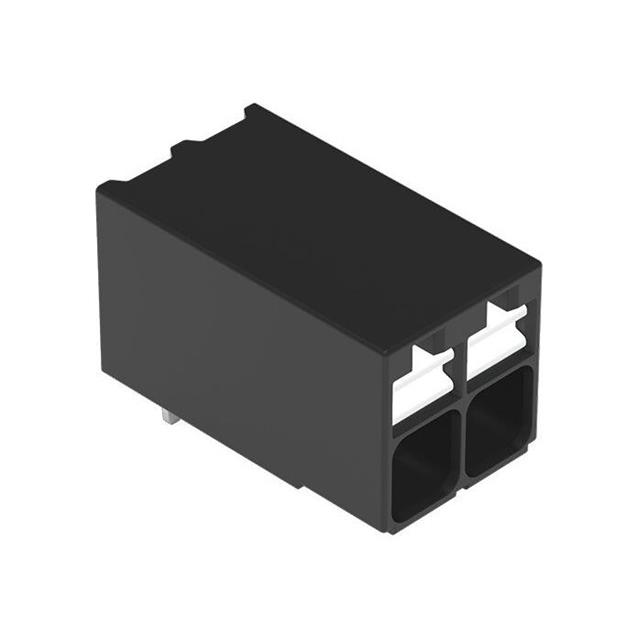

2086-1222/300-000 _ Wire to Board_Terminal Blocks_Connectors, Interconnects

Part Number	2086-1222/300-000
Manufacturer	WAGO
Other Part Numbers	2946-2086-1222/300-000-ND 2946-2086-1222/300-000
Description	TERM BLK 2P SIDE ENT 3.5MM PCB
Detailed Description	2 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		2086
Packaging		Tray
Part Status		Active
Features		Push Button Actuated
Color		Black
Mounting Type		Through Hole
Wire Gauge		16-24 AWG
Pitch		0.138" (3.50mm)
Operating Temperature		-60°C ~ 105°C
Mating Orientation		Horizontal with Board
Positions Per Level		2
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Material - Plating		Electrolytic Copper - Tin Plated
Clamp Material - Plating		Steel - Nickel Plated
Wire Termination		Screwless - Push Button Clamp
Current		10 A
Number of Levels		1
Voltage		300 V

RESOURCE TYPE		LINK
Datasheets		2086-1222/300-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
