2091-1356/000-5000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2091-1356/000-5000
Manufacturer	WAGO
Other Part Numbers	2946-2091-1356/000-5000-ND 2091-1356/0000-5000 2943-2091-1356/000-5000 02091-1356/000-5000 20911356/0005000 020911356/0005000 2946-2091-1356/000-5000 2943-2091-1356/000-5000-ND 51251075
Description	1-CONDUCTOR THT FEMALE HEADER; 1

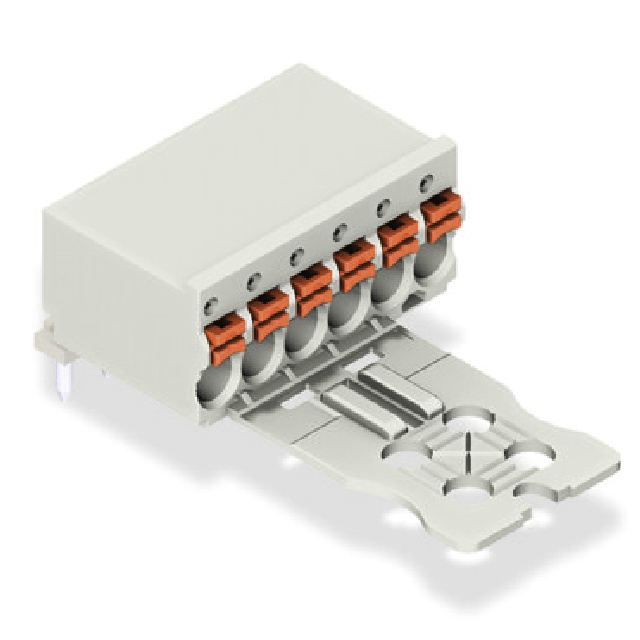

Detailed Description	6 Position Terminal Block Header, Female Sockets 0.138" (3.50mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		picoMAX®eCOM 3.5
Packaging		Box
Part Status		Active
Features		Push Button Actuated, Strain Relief
Color		Gray
Mounting Type		Through Hole
Number of Positions		6
Pitch		0.138" (3.50mm)
Type		Header, Female Sockets
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		1
Wire Gauge or Range - AWG		14-24 AWG
Wire Gauge or Range - mm²		0.2-1.5mm²
Positions Per Level		6
Contact Material		Electrolytic Copper
Header Orientation		90°, Right Angle
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Wire Strip Length		8-9mm
Contact Tail Length		0.142" (3.60mm)
Insulation Height		0.449" (11.40mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		2091-1356/000-5000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
