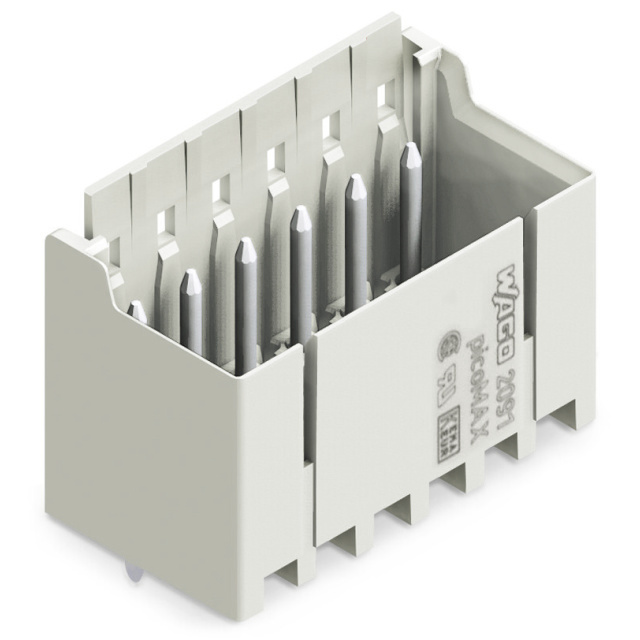

2091-1410/200-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2091-1410/200-000
Manufacturer	WAGO
Other Part Numbers	2946-2091-1410/200-000-ND 2943-2091-1410/200-000 2946-2091-1410/200-000 51253763 2091-1410/0200-0000 20911410/200000 020911410/200000 2943-2091-1410/200-000-ND 02091-1410/200-000
Description	THR MALE HEADER; 1.0 MM SOLDER
Detailed Description	10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		picoMAX® 3.5
Packaging		Box
Part Status		Active
Color		Gray
Mounting Type		Through Hole
Number of Positions		10
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		1
Positions Per Level		10
Contact Material		Electrolytic Copper
Header Orientation		Vertical
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.094" (2.40mm)
Insulation Height		0.689" (17.50mm)
Current - UL		10 A
Voltage - IEC		160 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		2091-1410/200-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
