21033091531

Part Number
21033091531
Manufacturer HARTING
Other Part Numbers
1195-21033091531-ND
21 03 309 1531
1195-21033091531
21-03-309-1531

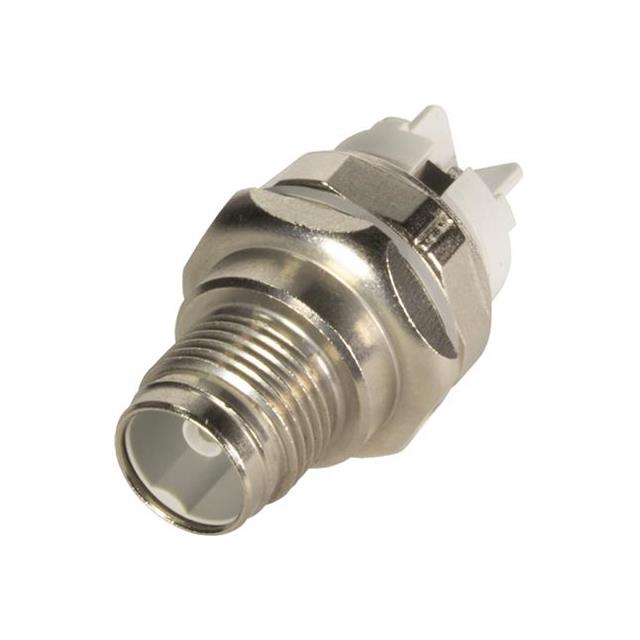

Description M12 K-CODE 4+PE PIN, MALE, FRONT
Detailed Description 5 (4 Power + PE) Position Circular Connector Receptacle, Male Pins Solder
Manufacturer Standard Lead Time 17 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer HARTING
Series
Han® M12 Power
Packaging
Bulk
Part Status Active
Connector Type Receptacle, Male Pins
Color Silver
Voltage Rating 630V
Current Rating (Amps) 12A
Mounting Type Panel Mount, Through Hole
Shielding Shielded
Number of Positions 5 (4 Power + PE)
Orientation K
Shell Size - Insert M12-5
Operating Temperature -40°C ~ 125°C
Fastening Type Threaded
Termination Solder
Ingress Protection IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Mounting Feature Bulkhead - Rear Side Nut
Contact Material Copper Alloy
Contact Finish - Mating Gold
Insert Material Polyamide (PA), Nylon

Documents & Media

RESOURCE TYPE LINK
Datasheets 21033091531
Datasheets 21033091531 Prod Declaration Cert
Datasheets 21033091531

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4020
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

In Stock: 50

Can ship immediately.
