214551-E

Part Number
214551-E
Manufacturer TE Connectivity ERNI
Other Part Numbers
2684-214551-ETR-ND
2684-214551-ECT-ND
2684-214551-EDKR-ND
214551
2684-214551TR-ND
2684-214551TR
2684-214551DKR-ND
2684-214551-ECT
2684-214551CT-ND
2684-214551-ETR
2684-214551-EDKR
2684-214551DKR
2684-214551CT

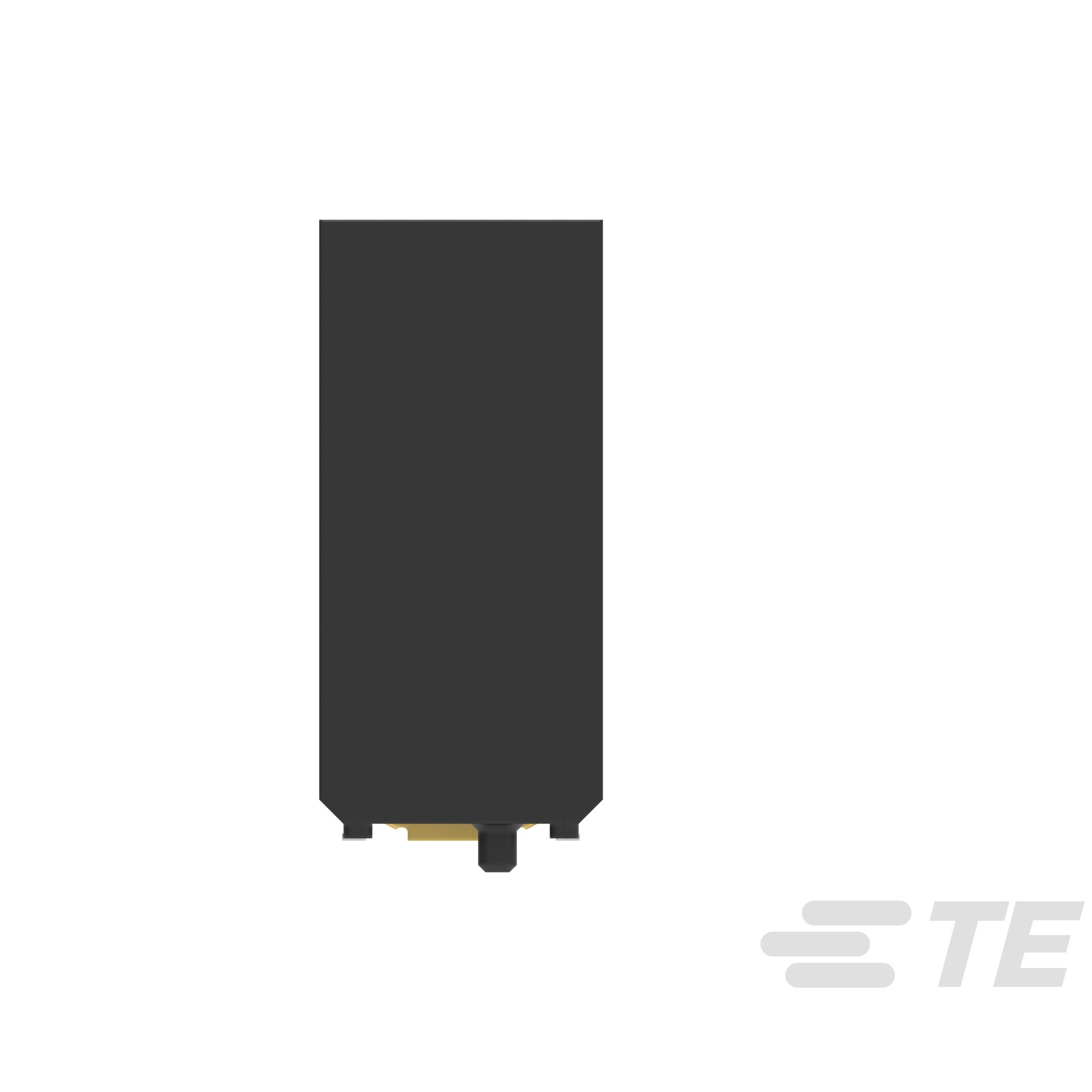

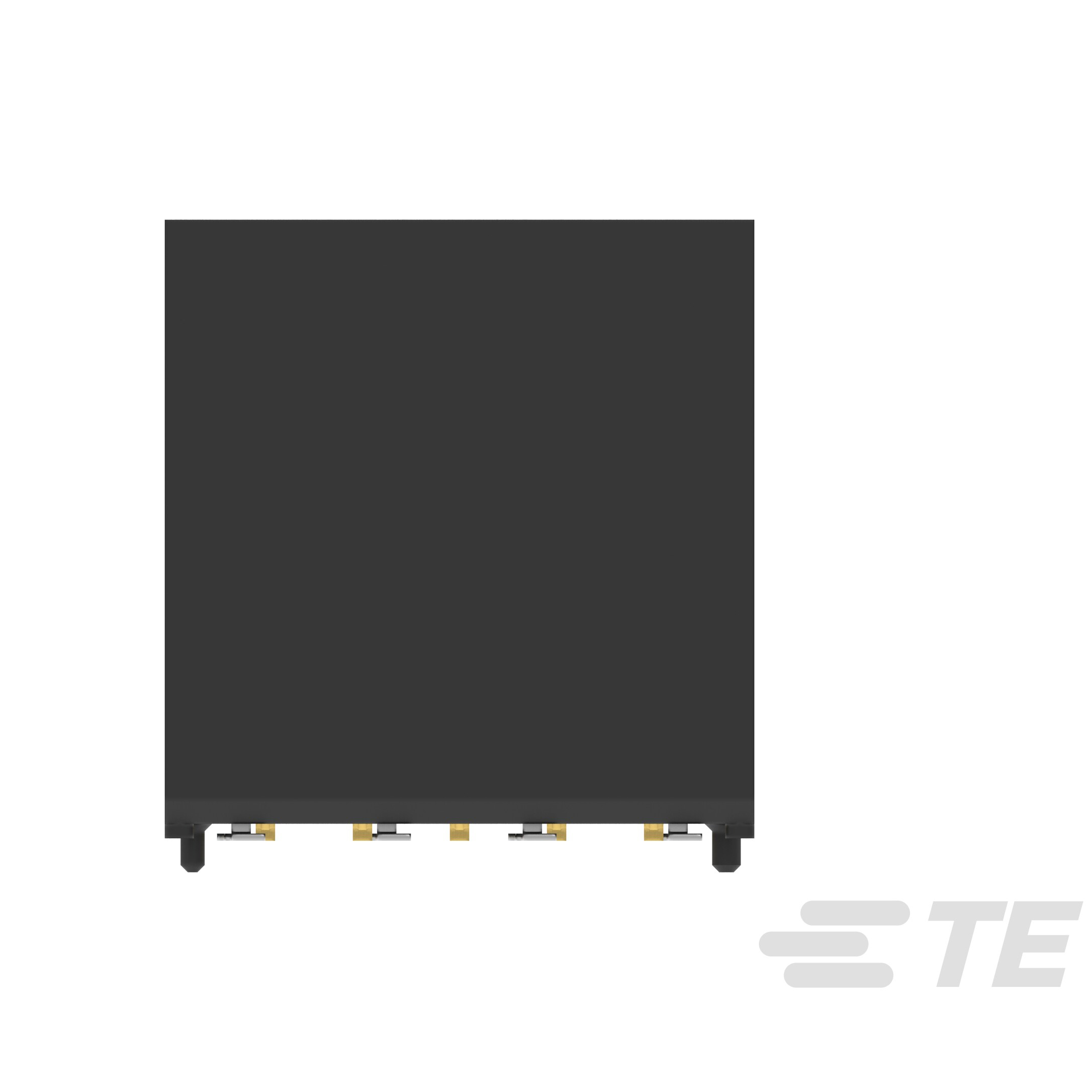

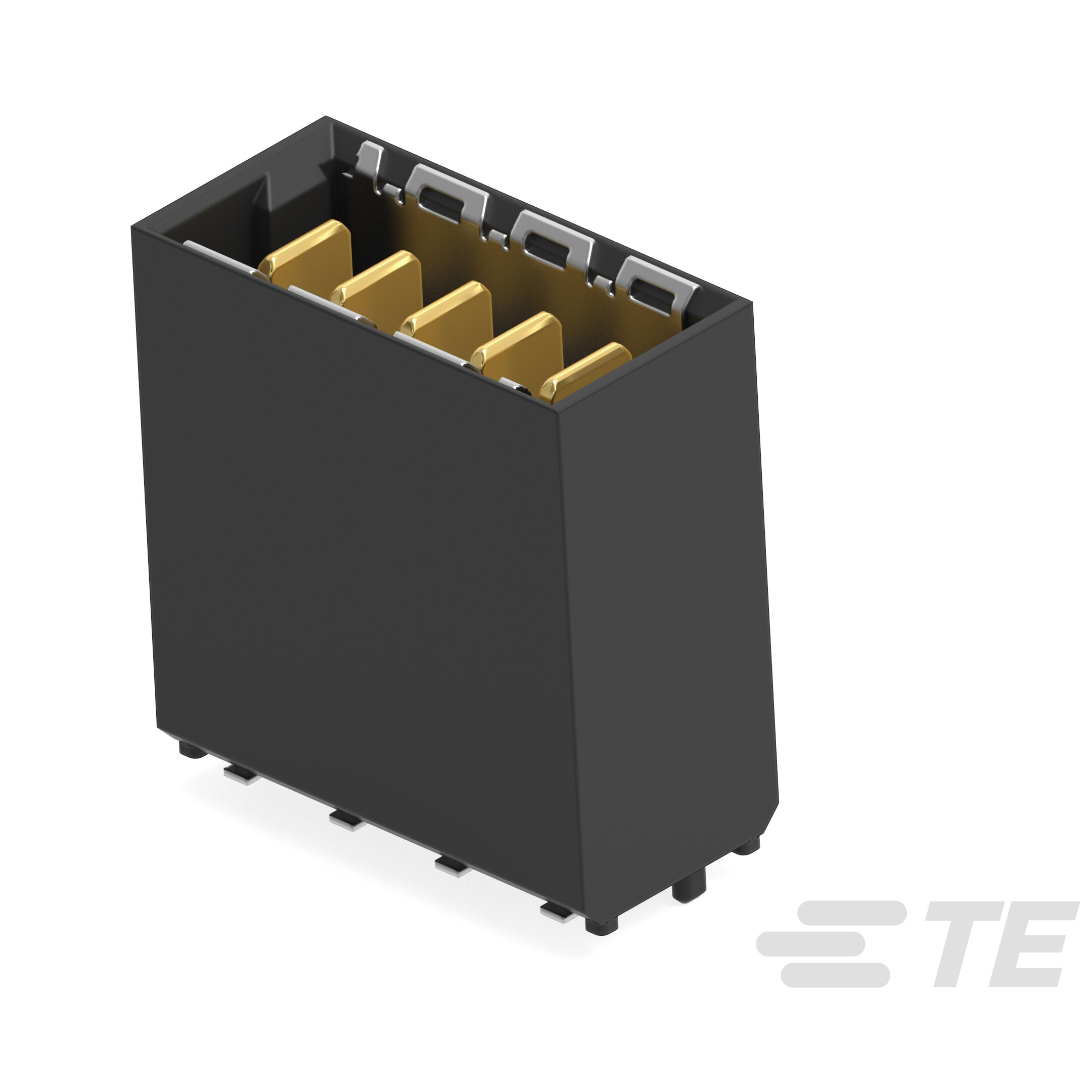

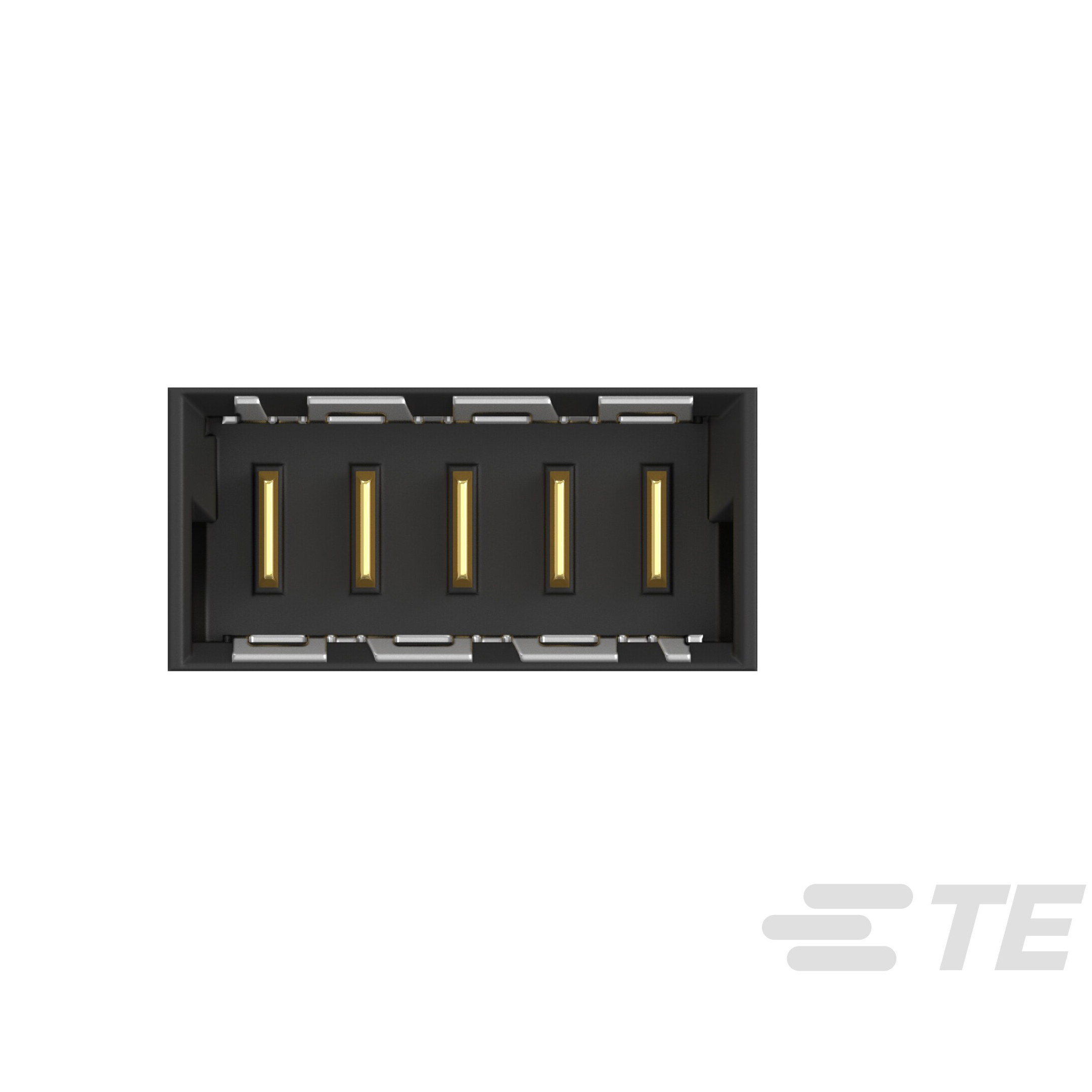

Description 5-PIN, VERTICAL, SMT
Detailed Description Connector Header Surface Mount 5 position 0.079" (2.00mm)
Manufacturer Standard Lead Time 61 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity ERNI
Series
MICROSPEED
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Features Board Guide
Connector Type Header
Current Rating (Amps) 18A
Mounting Type Surface Mount
Number of Positions 5
Number of Rows 1
Style Board to Cable/Wire
Operating Temperature -55°C ~ 125°C
Contact Type Male Blade
Fastening Type Latch Holder
Number of Positions Loaded All
Termination Solder
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Insulation Color Black
Pitch - Mating 0.079" (2.00mm)
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Shape Rectangular
Insulation Height 0.504" (12.80mm)
Shrouding Shrouded - 4 Wall
Insulation Material Liquid Crystal Polymer (LCP)
Contact Length - Mating 0.108" (2.75mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets 214551-E
Datasheets ERNI-MICROSPEED-POWER-DS
Datasheets PN Change 26/JAN/2023
Datasheets CVM 214551-E

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
