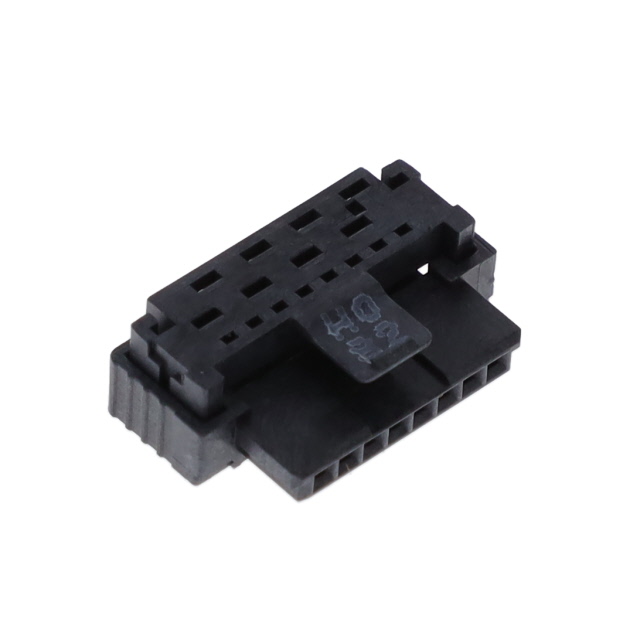

224400-E

224400-E

Part Number	224400-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-224400-E-ND 2684-224400-ND 224400-E 224400 2684-224400 2684-224400-E 100502140003
Description	8-PIN, FEMALE,IDC2426FRICTIONSTR
Detailed Description	8 Position Rectangular Receptacle Connector IDC Gold 24-26 AWG
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Free Hanging, Panel Mount
Manufacturer		TE Connectivity ERNI
Series		MiniBridge
Packaging		Tray
Part Status		Active
Connector Type		Receptacle
Contact Finish		Gold
Color		Black
Mounting Type		Free Hanging (In-Line)
Wire Gauge		24-26 AWG
Number of Positions		8
Pitch		0.050" (1.27mm)
Contact Type		Female Socket
Fastening Type		Latch Lock
Wire Type		Discrete or Ribbon Cable
Cable Termination		IDC
Number of Rows		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		224400-E
Datasheets		ERNI-MINIBRIDGE-1.27MM-CONNECTORS-DS
Datasheets		ERNI-MINIBRIDGE-1.27MM-CONNECTORS-DS
Datasheets		Tray packaging chg 13/OCT/2023
Datasheets		PN Change 26/JAN/2023
Datasheets		CVM 224400-E

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2336

Can ship immediately.
