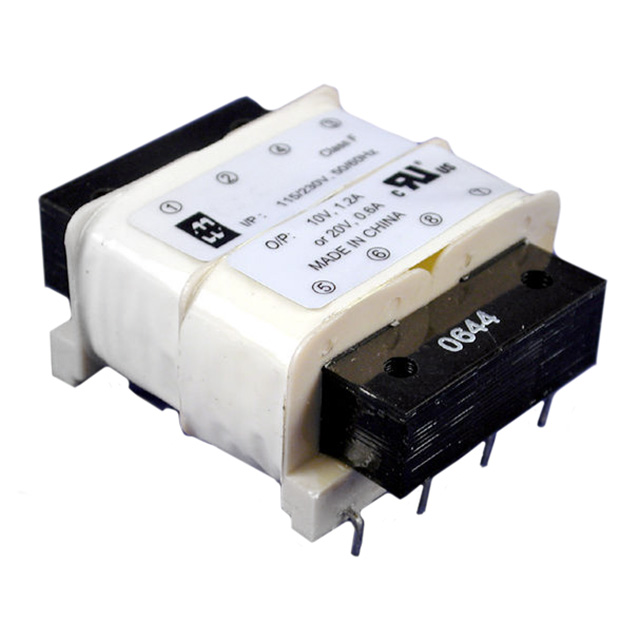

Part Number | 229B30 |
---|---|
Manufacturer | Hammond Manufacturing |
Other Part Numbers | HM4859-ND 3937-229B30 229B30-ND HM4859 |
Description | PWR XFMR SEMI-TORO 12VA TH |
Manufacturer Standard Lead Time | 12 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Hammond Manufacturing | |
Series | 229 | |
Packaging | Bulk | |
Part Status | Active | |
Size / Dimension | 50.80mm L x 63.50mm W | |
Mounting Type | Through Hole | |
Type | Semi-Toroidal | |
Weight | 0.63 lb (285.76 g) | |
Termination Style | PC Pin | |
Primary Winding(s) | Dual | |
Secondary Winding(s) | Dual | |
Power - Max | 12VA | |
Voltage - Isolation | 1750Vrms | |
Current - Output (Max) | Parallel 800mA, Series 400mA | |
Voltage - Primary | 115V, 230V | |
Height - Seated (Max) | 27.18mm | |
Voltage - Secondary (Full Load) | Parallel 15V, Series 30V | |
Center Tap | No |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 229 Series | |
Datasheets | Hammond REACH |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.31.4035 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $19.16 | $19.16 |
10 | $16.91 | $169.10 |
25 | $16.34 | $408.50 |
50 | $14.65 | $732.50 |
100 | $14.09 | $1,409.00 |
