231-234/001-000/105-604/997-407 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	231-234/001-000/105-604/997-407
Manufacturer	WAGO
Other Part Numbers	2946-231-234/001-000/105-604/997-407TR-ND 2943-231-234/001-000/105-604/997-407-ND 0231-234/001-000/105-604/997-407 2946-231-234/001-000/105-604/997-407-ND 0231-0234/0001-0000/0105-0604/0997-0407 2946-231-234/001-000/105-604/997-407 60278072 0231234/001000/105604/997407 231234/001000/105604/997407 2946-231-234/001-000/105-604/997-407TR 2943-231-234/001-000/105-604/997-407
Description	THR MALE HEADER; 1.0 X 1.0 MM SO
Detailed Description	4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI Classic

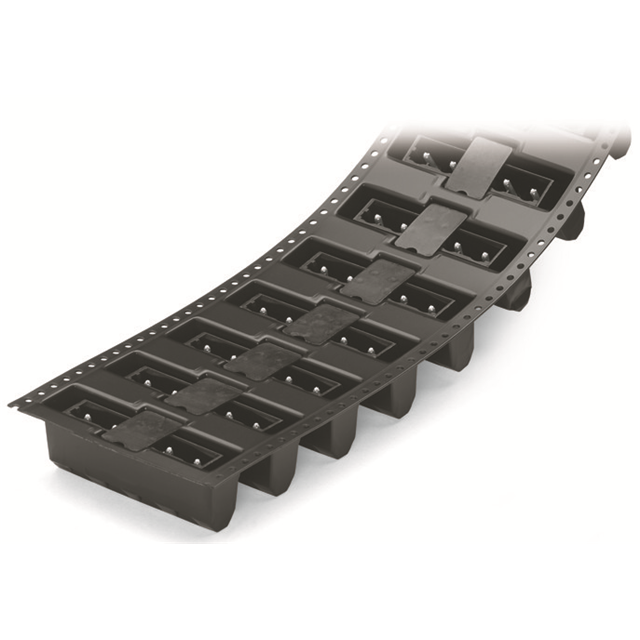

Packaging		Tape & Reel (TR)
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		4
Pitch		0.295" (7.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		4
Contact Material		Electrolytic Copper
Header Orientation		Vertical
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.094" (2.40mm)
Insulation Height		0.472" (12.00mm)
Current - UL		10 A
Voltage - IEC		1 kV
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		231-234/001-000/105-604/997-407

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
