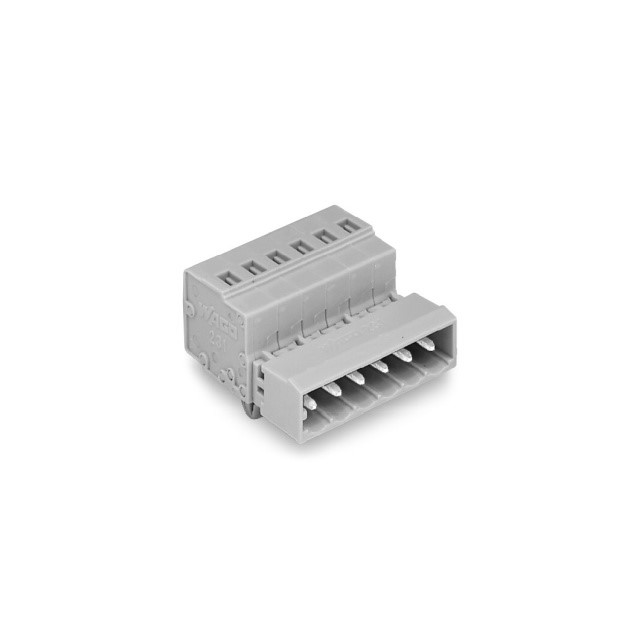

231-616/018-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	231-616/018-000
Manufacturer	WAGO
Other Part Numbers	2946-231-616/018-000-ND 2946-231-616/018-000 2943-231-616/018-000 51110873 0231-0616/0018-0000 0231616/018000 2943-231-616/018-000-ND 0231-616/018-000 231616/018000
Description	1-CONDUCTOR MALE CONNECTOR; SNAP
Detailed Description	16 Position Terminal Block Plug, Male Pins 0.197" (5.00mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI Classic
Packaging		Box
Part Status		Active
Features		Board Lock
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		16
Pitch		0.197" (5.00mm)
Type		Plug, Male Pins
Operating Temperature		-60°C ~ 100°C
Termination Style		Screwless - Spring Cage, Tension Clamp
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		12-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Positions Per Level		16
Plug Wire Entry		180°
Contact Mating Finish		Tin
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Box	1	$13.55	$13.55
Total Amount: $13.55

QUANTITY	UNIT PRICE	EXT PRICE
1	$13.55	$13.55
