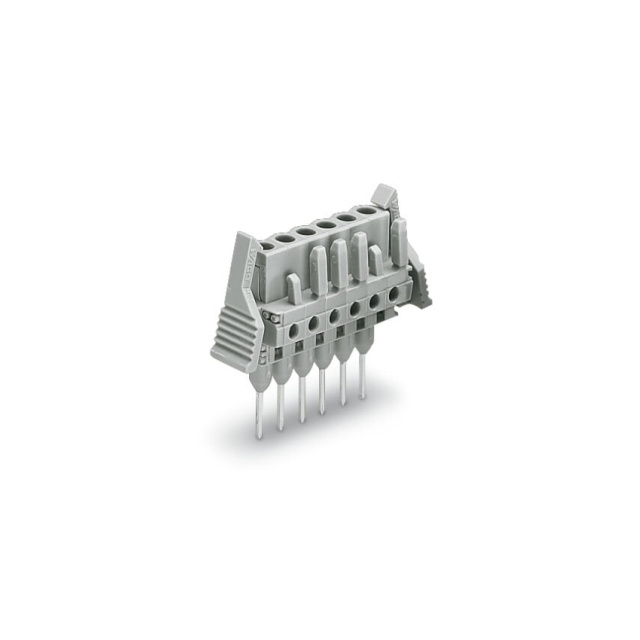

232-140/005-000/039-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	232-140/005-000/039-000
Manufacturer	WAGO
Other Part Numbers	2946-232-140/005-000/039-000-ND 51134758 0232-0140/0005-0000/0039-0000 2946-232-140/005-000/039-000 232140/005000/039000 0232-140/005-000/039-000 0232140/005000/039000 2943-232-140/005-000/039-000-ND 2943-232-140/005-000/039-000
Description	FEMALE CONNECTOR FOR RAIL-MOUNT
Detailed Description	10 Position Terminal Block Header, Female Sockets 0.197" (5.00mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI Classic
Packaging		Box
Part Status		Active
Features		Lever Actuated, Retention Latches (Non-Wire Side)
Color		Gray
Mounting Type		Through Hole
Number of Positions		10
Pitch		0.197" (5.00mm)
Type		Header, Female Sockets
Operating Temperature		-60°C ~ 85°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		10
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Contact Tail Length		0.039" (1.00mm)
Insulation Height		0.850" (21.59mm)
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		232-140/005-000/039-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
