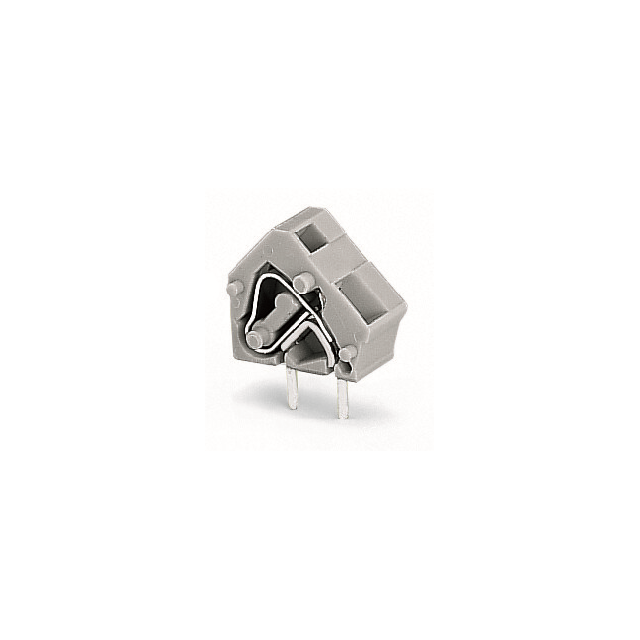

236-501

236-501

Part Number	236-501
Manufacturer	WAGO
Other Part Numbers	2946-236-501-ND 2946-236-501 2943-236-501-ND 0236501 51144917 2943-236-501 0236-501 236501 0236-0501
Description	STACKABLE PCB TERMINAL BLOCK; 2.
Detailed Description	1 Position Wire to Board Terminal Block 45° (135°) Angle with Board Through Hole
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		236
Packaging		Box
Part Status		Active
Color		Gray
Mounting Type		Through Hole
Wire Gauge		12-28 AWG
Operating Temperature		-60°C ~ 105°C
Mating Orientation		45° (135°) Angle with Board
Positions Per Level		1
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Material - Plating		Electrolytic Copper - Tin Plated
Clamp Material - Plating		Steel - Nickel Plated
Wire Termination		Screwless - Spring Cage, Tension Clamp
Current		15 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
