236-763

236-763

Part Number
236-763
Manufacturer WAGO
Other Part Numbers
2946-236-763-ND
2943-236-763-ND
51145191
2946-236-763
236763
2943-236-763
0236-763
0236763
0236-0763

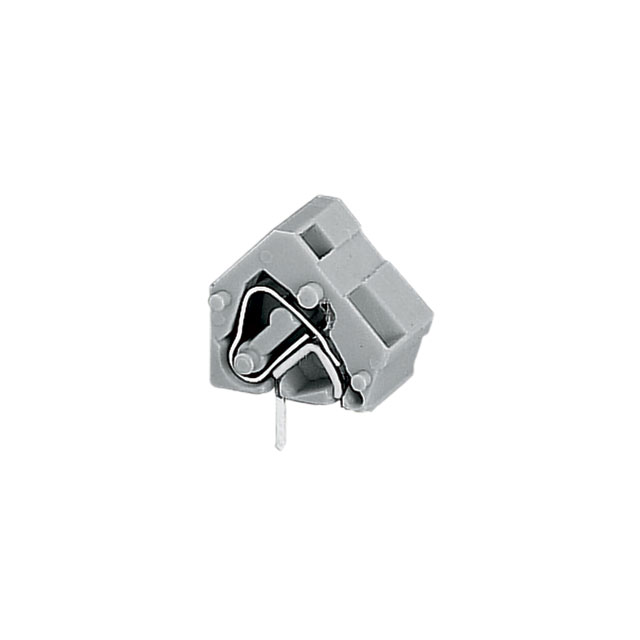

Description STACKABLE PCB TERMINAL BLOCK; 2.
Detailed Description 1 Position Wire to Board Terminal Block 45° (135°) Angle with Board Through Hole
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer WAGO
Series
236
Packaging
Box
Part Status Active
Color Gray
Mounting Type Through Hole
Wire Gauge 12-28 AWG
Operating Temperature -60°C ~ 105°C
Mating Orientation 45° (135°) Angle with Board
Positions Per Level 1
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Electrolytic Copper - Tin Plated
Clamp Material - Plating Steel - Nickel Plated
Wire Termination Screwless - Spring Cage, Tension Clamp
Current 15 A
Number of Levels 1
Voltage 300 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Box 1 $1.32 $1.32
Total Amount: $1.32

Box

QUANTITY UNIT PRICE EXT PRICE
1 $1.32 $1.32
