Part Number |
2558
|
---|---|
Manufacturer | B&K Precision |
Other Part Numbers |
BK2558-ND
BK2558
|
Description | 300 MHZ 2 GSA/S 2 CH DSO |

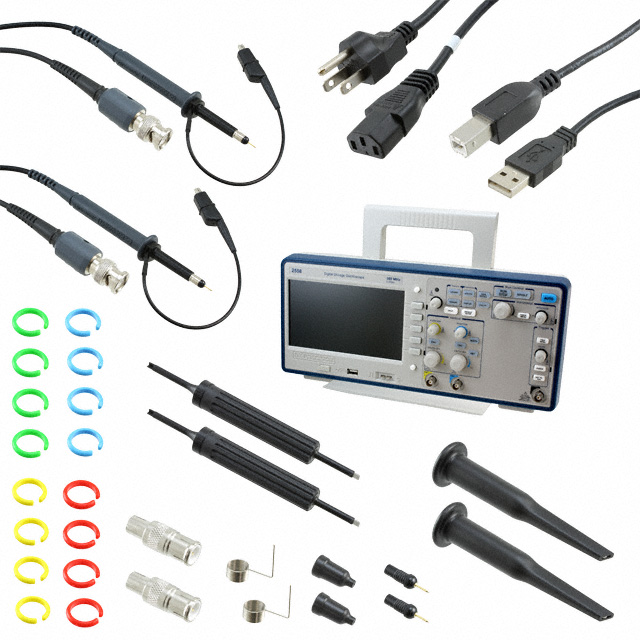

Detailed Description | 300 MHz Bench, Digital Oscilloscopes Ethernet, USB Interface LCD - Color Display 2 Channel CAT I 400V Record, Playback, Save, Trend |
Category | ||
---|---|---|
Manufacturer | B&K Precision | |
Series |
2550
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Display Type | LCD - Color | |
Function | Record, Playback, Save, Trend | |
Memory Size | 24kpts | |
Interface | Ethernet, USB | |
Type | Bench, Digital | |
Voltage - Supply | 100 ~ 240VAC | |
Sampling Rate (Per Second) | 2G | |
Voltage - Input (Max) | CAT I 400V | |
Channels | 2 | |
Input Impedance | 1M - 13pF | |
Probe Type | Passive 10:1 (2) | |
Bandwidth | 300 MHz | |
Rise Time (Typ) | 1.2 ns |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | 3A992A | |
HTSUS | 9030.20.1000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | Not applicable |
