2606-3110/020-000 _ Wire to Board_Terminal Blocks_Connectors, Interconnects

Part Number	2606-3110/020-000
Manufacturer	WAGO
Other Part Numbers	2946-2606-3110/020-000-ND 026063110/020000 60331742 2946-2606-3110/020-000 26063110/020000 2943-2606-3110/020-000-ND 2606-3110/0020-0000 2943-2606-3110/020-000 02606-3110/020-000

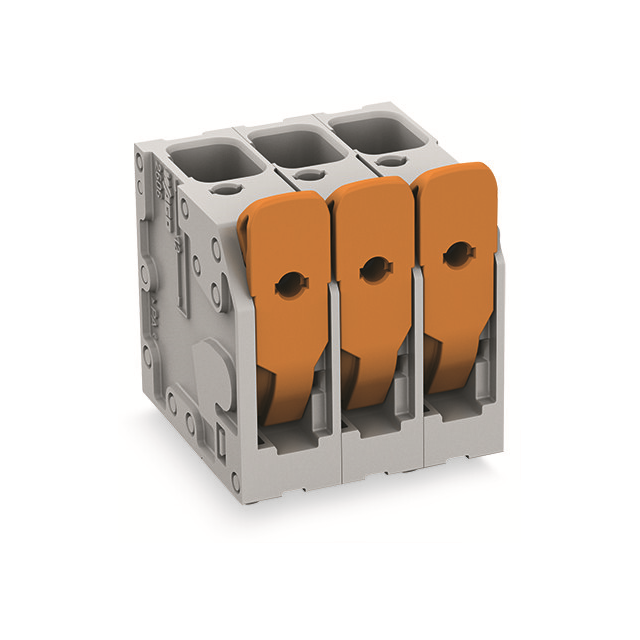

Description	PCB TERMINAL BLOCK; LEVER; 6 MM;
Detailed Description	10 Position Wire to Board Terminal Block Vertical with Board 0.295" (7.50mm) Through Hole
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		2606
Packaging		Box
Part Status		Active
Features		Lever Actuated
Color		Gray
Mounting Type		Through Hole
Wire Gauge		8-24 AWG
Pitch		0.295" (7.50mm)
Operating Temperature		-60°C ~ 105°C
Mating Orientation		Vertical with Board
Positions Per Level		10
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Material - Plating		Electrolytic Copper - Tin Plated
Clamp Material - Plating		Steel - Nickel Plated
Wire Termination		Screwless - Spring Cage, Tension Clamp
Current		31 A
Number of Levels		1
Voltage		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
