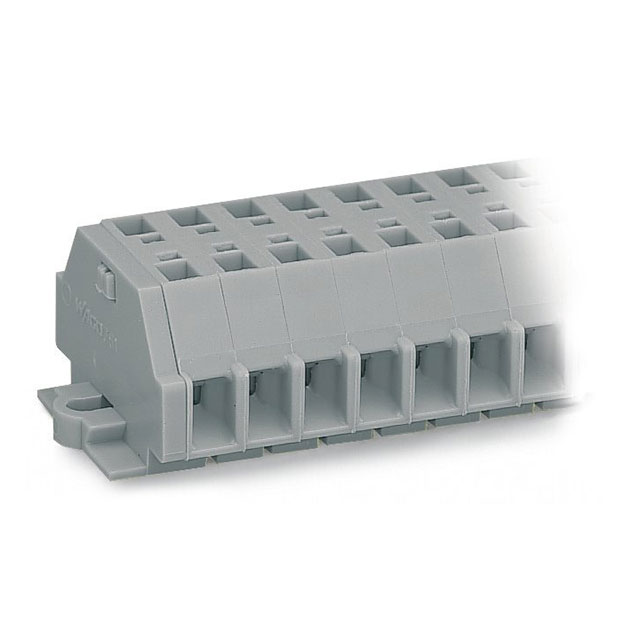

261-103 _ Specialized_Terminal Blocks_Connectors, Interconnects

Part Number	261-103
Manufacturer	WAGO
Other Part Numbers	2946-261-103-ND 2943-261-103-ND 2946-261-103 261103 2943-261-103 0261-103 51138092 0261103 0261-0103
Description	2-CONDUCTOR TERMINAL STRIP; 3-PO
Detailed Description	6 Position Terminal Block Gray Middle 32.1mm
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Specialized
Manufacturer		WAGO
Series
Packaging		Box
Part Status		Active
Mounting Type		Direct Mount
Length		1.106" (28.09mm)
Type		Middle
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		32.1mm
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Height (Max)		0.713" (18.11mm)
Housing Color		Gray
Stripping Length		8mm ~ 9mm
Current - IEC		24 A
Voltage - IEC		500 V
Number of Positions		6

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
