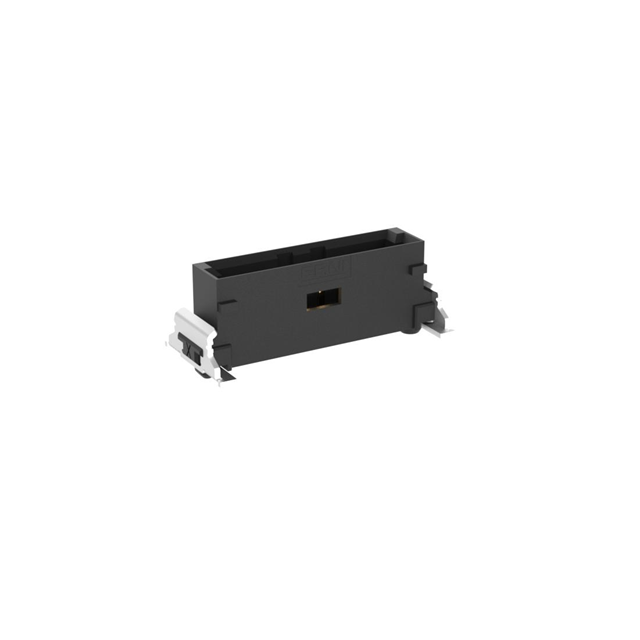

Part Number | 284699-E |
---|---|
Manufacturer | TE Connectivity ERNI |
Other Part Numbers | 2684-284699-ETR-ND 2684-284699-ECT-ND 2684-284699TR-ND 2684-284699TR 2684-284699DKR 100503240001 2684-284699-EDKR-ND 284699-E 2684-284699-ECT 2684-284699CT 284699 2684-284699-EDKR 2684-284699-EDKRINACTIVE 2684-284699-ETR 2684-284699CT-ND 2684-284699DKR-ND |
Description | MIBR M 08POS VERT P SMT |
Detailed Description | Connector Header Through Hole 8 position 0.050" (1.27mm) |
Manufacturer Standard Lead Time | 15 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity ERNI | |
Series | MiniBridge | |
Packaging | Tape & Reel (TR) Cut Tape (CT) | |
Part Status | Active | |
Connector Type | Header | |
Current Rating (Amps) | 5.4A per Contact | |
Mounting Type | Through Hole | |
Number of Positions | 8 | |
Number of Rows | 1 | |
Style | Board to Cable/Wire | |
Applications | General Purpose | |
Contact Type | Male Pin | |
Number of Positions Loaded | All | |
Termination | Solder | |
Material Flammability Rating | UL94 V-0 | |
Contact Material | Phosphor Bronze | |
Insulation Color | Black | |
Pitch - Mating | 0.050" (1.27mm) | |
Contact Finish - Mating | Gold | |
Contact Finish - Post | Gold | |
Contact Shape | Square | |
Shrouding | Shrouded - 4 Wall | |
Insulation Material | Liquid Crystal Polymer (LCP) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | PN Change 26/JAN/2023 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
650 | $1.55 | $1,007.50 |
1,300 | $1.33 | $1,729.00 |
1,950 | $1.29 | $2,515.50 |
3,250 | $1.24 | $4,030.00 |
6,500 | $1.18 | $7,670.00 |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $2.40 | $2.40 |
10 | $2.09 | $20.90 |
25 | $2.00 | $50.00 |
50 | $1.95 | $97.50 |
100 | $1.86 | $186.00 |
250 | $1.69 | $422.50 |
