294006-E

294006-E

Part Number	294006-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-294006-ETR-ND 2684-294006-ECT-ND 2684-294006-EDKR-ND 2684-294006CT-ND 2684-294006DKR-ND 294006 2684-294006TR-ND 100200100004 294006-E 2684-294006-ETR 2684-294006-ECT 2684-294006CT 2684-294006TR 2684-294006DKR 2684-294006-EDKR

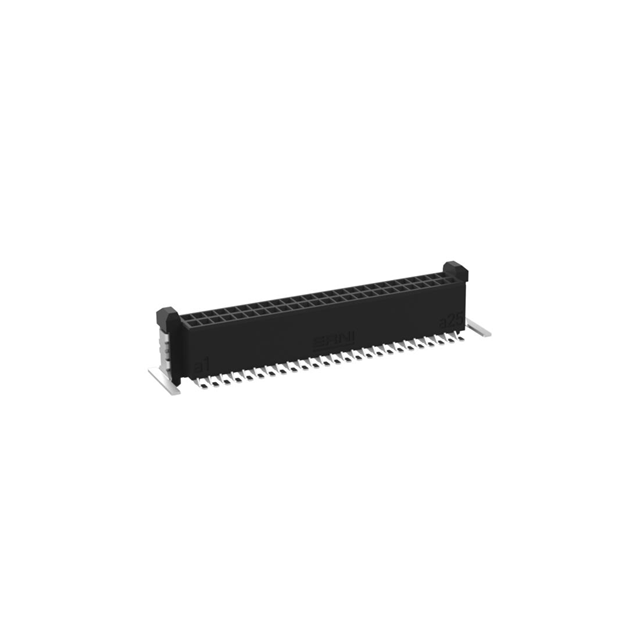

Description	MICROCON F 050POS B VERT 4MM
Detailed Description	50 Position Connector Array, Female Sockets Surface Mount Gold
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		TE Connectivity ERNI
Series		MICROCON
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Pick and Place, Solder Retention
Connector Type		Array, Female Sockets
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		50
Pitch		0.031" (0.80mm)
Height Above Board		0.157" (4.00mm)
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		294006-E
Datasheets		ERNI MicroCon Connector
Datasheets		Change of plating supplier 20/SEP/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3101

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$6.32	$6.32
Total Amount: $6.32

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$4.84	$4,840.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$6.32	$6.32
10	$5.69	$56.90
25	$5.36	$134.00
50	$5.22	$261.00
100	$5.08	$508.00
250	$4.84	$1,210.00
