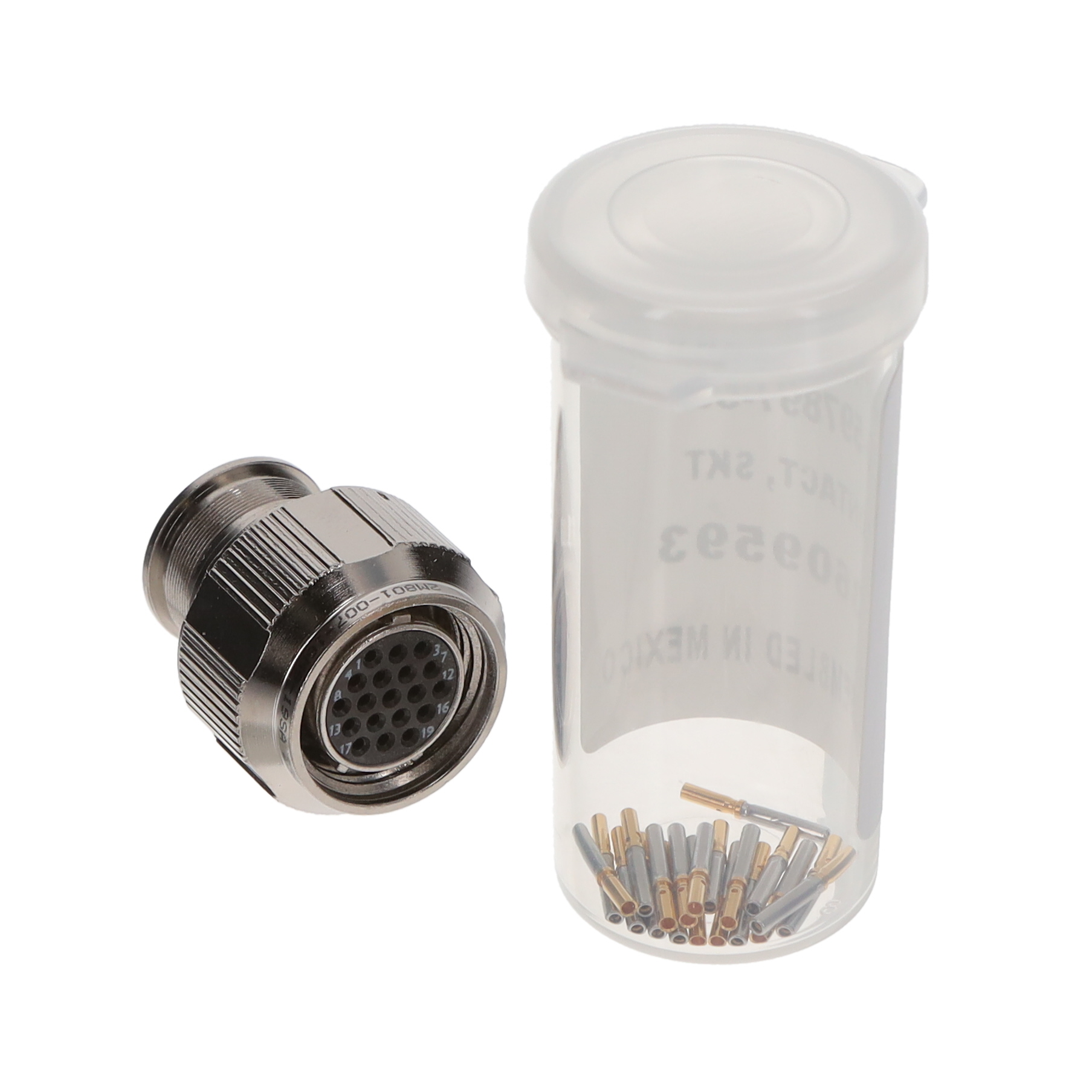

2M801-007-16M9-19SA _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	2M801-007-16M9-19SA
Manufacturer	Amphenol Aerospace Operations
Other Part Numbers	1178-2M801-007-16M9-19SA-ND FH-678084-19S 1178-2M801-007-16M9-19SA
Description	PLUG WITH
Detailed Description	19 Position Circular Connector Plug, Female Sockets Crimp
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Amphenol Aerospace Operations
Series		2M
Packaging		Bulk
Part Status		Active
Features		Backshell, Coupling Nut
Connector Type		Plug, Female Sockets
Color		Silver
Current Rating (Amps)		5A
Mounting Type		Free Hanging (In-Line)
Shielding		Shielded
Number of Positions		19
Orientation		A
Shell Size - Insert		9-19
Operating Temperature		-65°C ~ 150°C
Fastening Type		Threaded
Termination		Crimp
Ingress Protection		IP67 - Dust Tight, Waterproof
Cable Opening		0.500" (12.70mm)
Contact Material		Copper Alloy
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		50.0µin (1.27µm)
Shell Material		Aluminum Alloy
Shell Finish		Electroless Nickel
Insert Material		Polyphenylene Sulfide (PPS)
Primary Material		Metal

RESOURCE TYPE		LINK
Datasheets		2M801-007-16M9-19SA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
