2RS1-16-G _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	2RS1-16-G
Manufacturer	Adam Tech
Other Part Numbers	2057-2RS1-16-G-ND 2057-2RS1-16-G

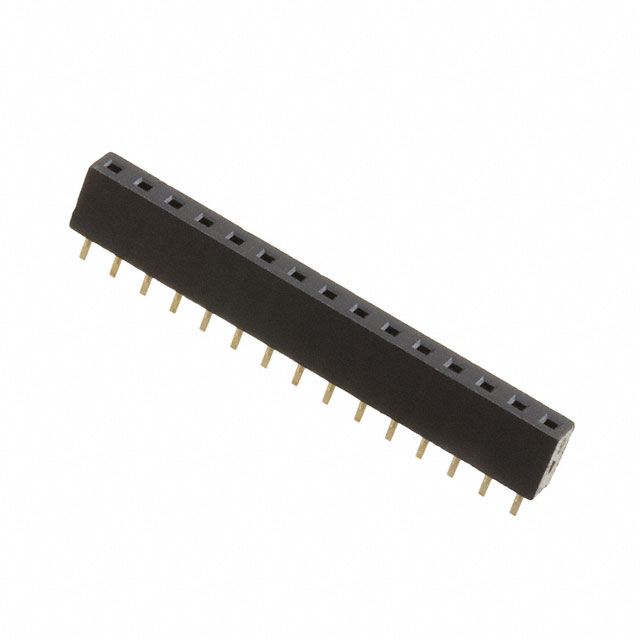

Description	RECEPTACLE STRIP 16P 2.0MM PITCH
Detailed Description	16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Adam Tech
Series		2RS1
Packaging		Tube
Part Status		Active
Connector Type		Receptacle
Voltage Rating		250VAC
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		16
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Applications		General Purpose
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Contact Length - Post		0.094" (2.40mm)
Insulation Height		0.169" (4.30mm)
Insulation Material		Polybutylene Terephthalate (PBT)
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		2RS1-16-G
Datasheets		Medical Industry Brochure
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
