Part Number |
3.14001.0130000
|
---|---|
Manufacturer | RAFI |
Other Part Numbers |
3.14001.0130000-ND
*3.14001.0130000
3.14.001.013/0000
3.14001.013
3140010130000
|
Description | SWITCH TACTILE SPST-NO 0.1A 42V |

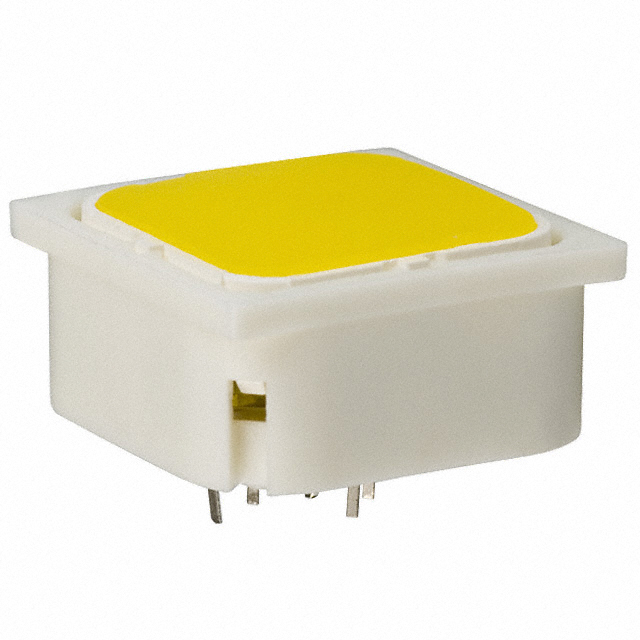

Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
Category | ||
---|---|---|
Manufacturer | RAFI | |
Series |
RF19
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |
Mounting Type | Through Hole | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Operating Temperature | -25°C ~ 70°C | |
Termination Style | PC Pin | |
Illumination Type, Color | LED, Yellow | |
Illumination | Illuminated | |
Contact Rating @ Voltage | 0.1A @ 42VAC/DC | |
Actuator Type | Square Button | |
Operating Force | 204 ~ 306gf | |
Outline | 19.05mm x 19.05mm | |
Actuator Height off PCB, Vertical | 9.70mm | |
Actuator Orientation | Top Actuated |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9031 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected |
