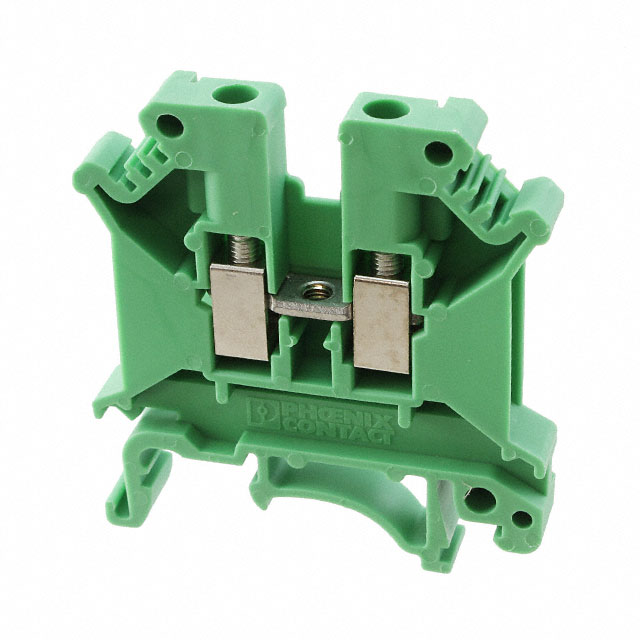

Part Number | 3003965 |
---|---|
Manufacturer | Phoenix Contact |
Other Part Numbers | 277-3354-ND UK5NGN 277-3354 3003965-ND 3003965-NDR |
Description | CONN TERM BLK FEED THRU 10-30AWG |
Detailed Description | Terminal Block Connector 2 Position Feed Through Green 10-30 AWG |
Manufacturer Standard Lead Time | 17 weeks |
Category | ||
---|---|---|
Manufacturer | Phoenix Contact | |
Series | CLIPLINE UK | |
Packaging | Bulk | |
Part Status | Active | |
Color | Green | |
Type | Feed Through | |
Termination Style | Screw | |
Material - Insulation | Polyamide (PA), Nylon | |
Material Flammability Rating | UL94 V-0 | |
Number of Levels | 1 | |
Terminal - Width | 6.2mm | |
Voltage - IEC | 800V | |
Voltage - UL | 600V | |
Wire Gauge or Range - AWG | 10-30 AWG | |
Wire Gauge or Range - mm² | 0.2-6mm² | |
Stripping Length | 8mm | |
Current - UL | 30 A | |
Current - IEC | 32 A | |
Number of Positions | 2 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Affected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $3.55 | $3.55 |
10 | $3.46 | $34.60 |
50 | $3.23 | $161.50 |
100 | $2.97 | $297.00 |
250 | $2.75 | $687.50 |
500 | $2.62 | $1,310.00 |
1,000 | $2.47 | $2,470.00 |
