3040708 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	3040708
Manufacturer	Phoenix Contact
Other Part Numbers	277-4081-ND 3040708-ND 277-4081 SP 2.5/ 1 GNYE SP2.5/1GNYE
Description	TERM BLOCK PLUG 1POS STR

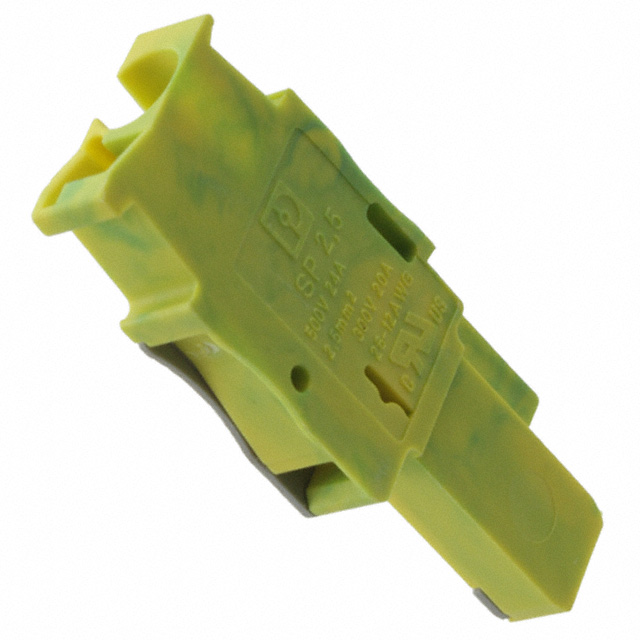

Detailed Description	1 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		CLIPLINE COMBI SP
Packaging		Bulk
Part Status		Active
Color		Green, Yellow
Mounting Type		Free Hanging (In-Line)
Number of Positions		1
Type		Plug, Female Sockets
Termination Style		Screwless - Spring Cage, Tension Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		24A
Number of Levels		1
Wire Gauge or Range - AWG		12-28 AWG
Wire Gauge or Range - mm²		0.08-4mm²
Positions Per Level		1
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Wire Strip Length		10mm
Insulation Height		1.535" (39.00mm)
Current - UL		20 A
Voltage - IEC		500 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		3040708

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$2.22	$2.22
Total Amount: $2.22
