Part Number | 3048 YL005 |
---|---|
Manufacturer | Alpha Wire |
Other Part Numbers | A3048Y-100-ND 3048-100-YELLOW A3048Y-100 3048YL005 |

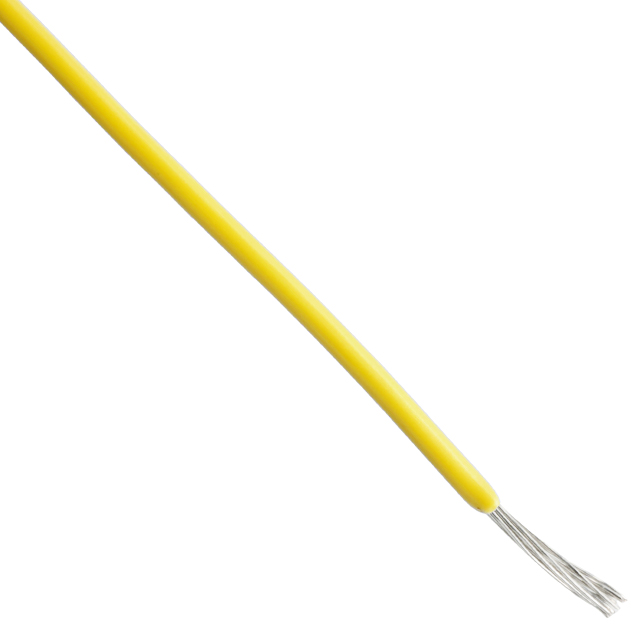

Description | HOOK-UP STRND 28AWG YLW 100' |
Detailed Description | 28 AWG Hook-Up Wire 7/36 Yellow 300V 100.0' (30.5m) |
Manufacturer Standard Lead Time | 5 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Alpha Wire | |
Series | ||
Packaging | Spool | |
Part Status | Active | |
Features | Biological Compatibility | |
Voltage | 300V | |
Length | 100.0' (30.5m) | |
Wire Gauge | 28 AWG | |
Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | |
Conductor Strand | 7/36 | |
Operating Temperature | -40°C ~ 105°C | |
Cable Type | Hook-Up | |
Jacket (Insulation) Diameter | 0.047" (1.19mm) | |
Ratings | ISO 10993, UL Style 1007/1569 | |
Jacket (Insulation) Thickness | 0.016" (0.41mm) | |
Conductor Material | Copper, Tinned | |
Jacket Color | Yellow |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Hook-Up Wire Catalog | |
Datasheets | Alpha Wire CAP65 | |
Datasheets | Alpha Wire REACH | |
Datasheets | RoHS 3048 Series |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8544.49.3080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $29.19 | $29.19 |
3 | $27.03 | $81.09 |
5 | $26.65 | $133.25 |
