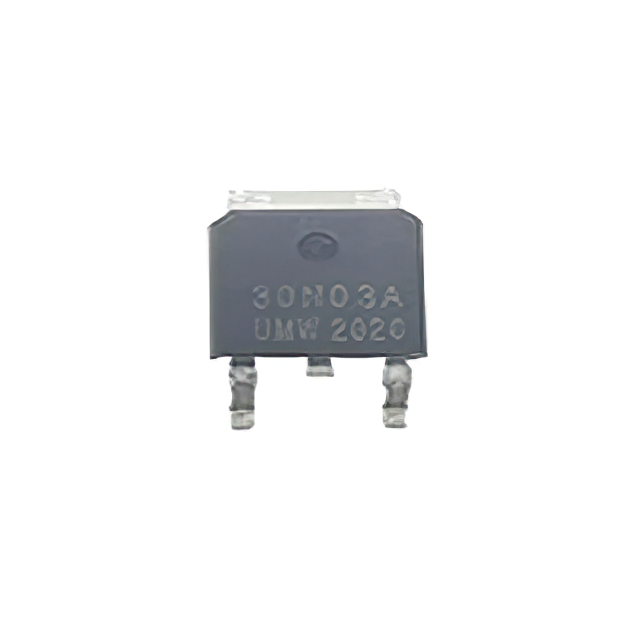

30N03A _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	30N03A
Manufacturer	UMW
Other Part Numbers	4518-30N03ATR-ND 4518-30N03ACT-ND 4518-30N03ADKR-ND 4518-30N03ATR 4518-UMW30N03ATR-ND 4518-30N03ACT UMW 30N03A 4518-30N03ADKR 4518-UMW30N03ATR
Description	TO-252 MOSFETS ROHS
Detailed Description	N-Channel 30 V 90A (Tc) 105W (Tc) Surface Mount TO-252 (DPAK)
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		UMW
Series		UMW
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

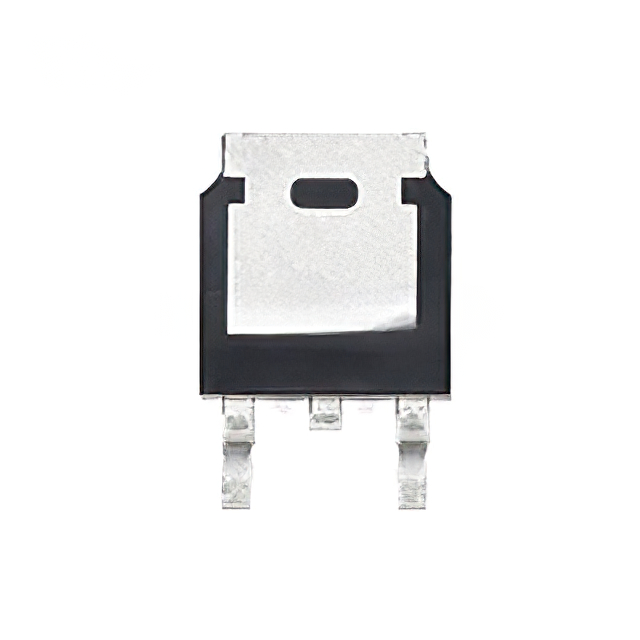

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		90A (Tc)
Rds On (Max) @ Id, Vgs		5mOhm @ 30A, 10V
Power Dissipation (Max)		105W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 250µA
Supplier Device Package		TO-252 (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		41 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1963 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
