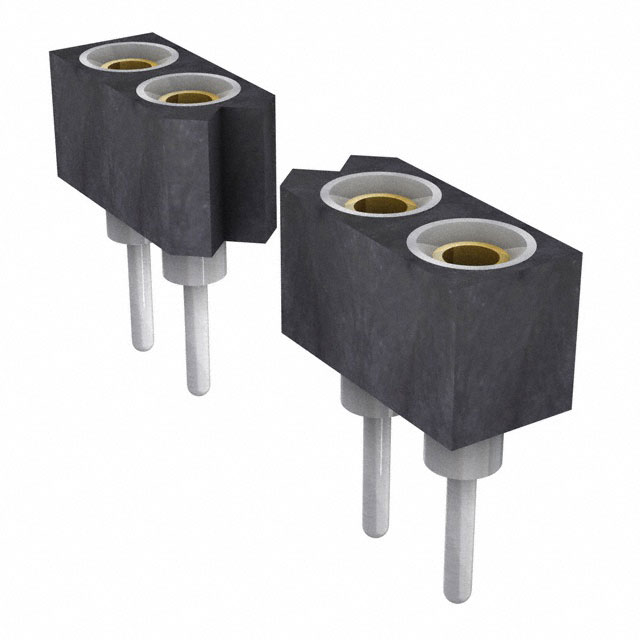

317-87-121-41-005101 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	317-87-121-41-005101
Manufacturer	Preci-Dip
Other Part Numbers	1212-1133-ND 1212-1133 3.17871E+15
Description	CONN SOCKET 21POS 0.07 GOLD PCB
Detailed Description	21 Position Socket Connector 0.070" (1.78mm) Through Hole Gold
Manufacturer Standard Lead Time	11 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Preci-Dip
Series		317
Packaging		Bulk
Part Status		Active
Connector Type		Socket
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		21
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Beryllium Copper
Insulation Color		Black
Pitch - Mating		0.070" (1.78mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Tin
Contact Shape		Circular
Contact Length - Post		0.125" (3.18mm)
Insulation Height		0.165" (4.20mm)
Insulation Material		Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Number of Rows		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
