317030213

Part Number
317030213
Manufacturer Seeed
Other Part Numbers
1597-1434-ND
1597-1434

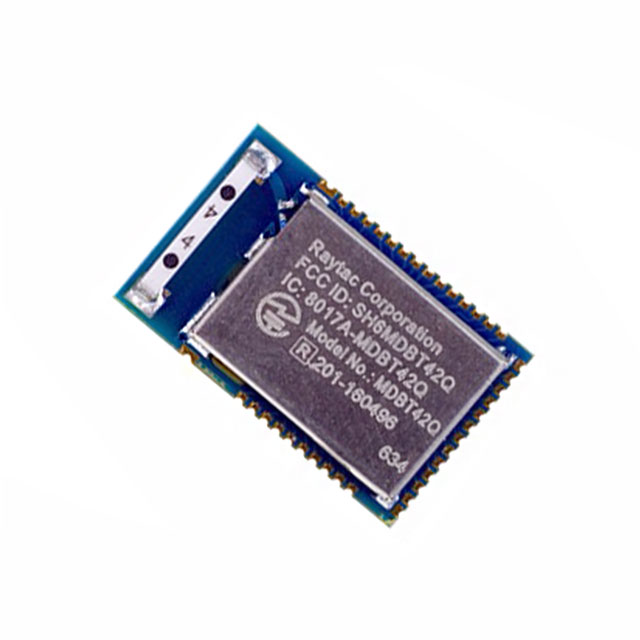

Description RF TXRX MODULE BT CHIP SMD
Detailed Description Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Manufacturer Standard Lead Time 17 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Seeed
Series
Packaging
Bulk
Part Status Active
Package / Case 41-SMD Module
Mounting Type Surface Mount
Frequency 2.4GHz
Memory Size 512kB Flash, 64kB RAM
Operating Temperature -40°C ~ 85°C
Voltage - Supply 1.7V ~ 3.6V
Power - Output 4dBm
Data Rate 2Mbps
Protocol Bluetooth v4.2
Current - Receiving 13mA
Current - Transmitting 11.6mA
Antenna Type Integrated, Chip
Utilized IC / Part nRF52832
RF Family/Standard Bluetooth
Serial Interfaces I2C, I2S, SPI, UART
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets 317030213

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8517.62.0090
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 9

Can ship immediately.
